Plasma cutting is a melting process that uses plasma and an outside power source to create an electric arc between the electrode and the metal being cut. The plasma jet melts the metal to make the cut, and the air attached to your machine blows it away. Plasma can cut through anything electrically conductive; steel, stainless steel and aluminium are all fair game.

So, what do you need to get to get started with your plasma cutting?

Air Compressors

Plasma cutters in Australia are made to work on compressed air only, including UNIMIG machines. If you want to plasma cut, you’re going to need an air compressor to connect to your machine.

When purchasing a compressor, make sure to get one that can deliver 70–120psi and has an airflow/intake volume rating that is greater than your plasma cutters.

Your plasma cutter will state the litres per minute (L/min) it uses, so you’ll want a compressor that states a higher number than that. You don’t want to run out of air before you’ve finished your cut.

You can also buy plasma cutters that have a built-in air compressor. There are benefits to both options, so you’ll need to consider before deciding which will work best for you.

	Pros	Cons
External Air Compressor	More Power	Not Portable
Built-in Air Compressor	Portable	Less Power

Unfortunately, UNIMIG doesn’t sell air compressors, so you’ll need to visit your local hardware store once you’ve bought a plasma cutter.

Clean Cut vs Severance

You can get two types of cuts with your plasma cutter: a clean-cut or a severance cut.

Clean cut: a smooth, clean-cut through the metal.

Severance: a cut all the way through, but it won’t be smooth or pretty, and if you plan on working on it after, you’ll need to clean it up.

Usually, every plasma cutter will have a maximum clean cut thickness and a maximum severance it can do. These indicate how thick the metal can be if you want a good quality cut and how thick the metal can be if all you need is to get through it. The severance thickness will always be more than the clean-cut thickness. These cut depths will also change depending on the metal type.

Back Arc vs High-Frequency

There are two arc ignition types when it comes to plasma cutting, though both are considered ‘pilot arc’.

The first is High-Frequency (HF). A HF plasma torch needs to be in very close proximity for the arc to spark and begin the ionising process. The arc jumps from the torch to the metal, and HF torch consumables generally wear out faster because of this.

The second type is Back Arc Strike. A torch will start up automatically with just the touch of a button through a spring-loaded design inside the torch head. The benefit of a back arc start is that it’s a lot more user friendly. It doesn’t matter if your metal is rusty or otherwise not clean; a back arc torch can cut straight through all of it. CNC table plasma cutting torches are also back arc strike ignition.

The back arc strike torches are much more common and popular these days, as HF torches run the risk of disrupting sensitive equipment that might be nearby, such as hospital machinery and computers.

Every UNIMIG plasma cutter comes with a back/pilot arc capable torch.

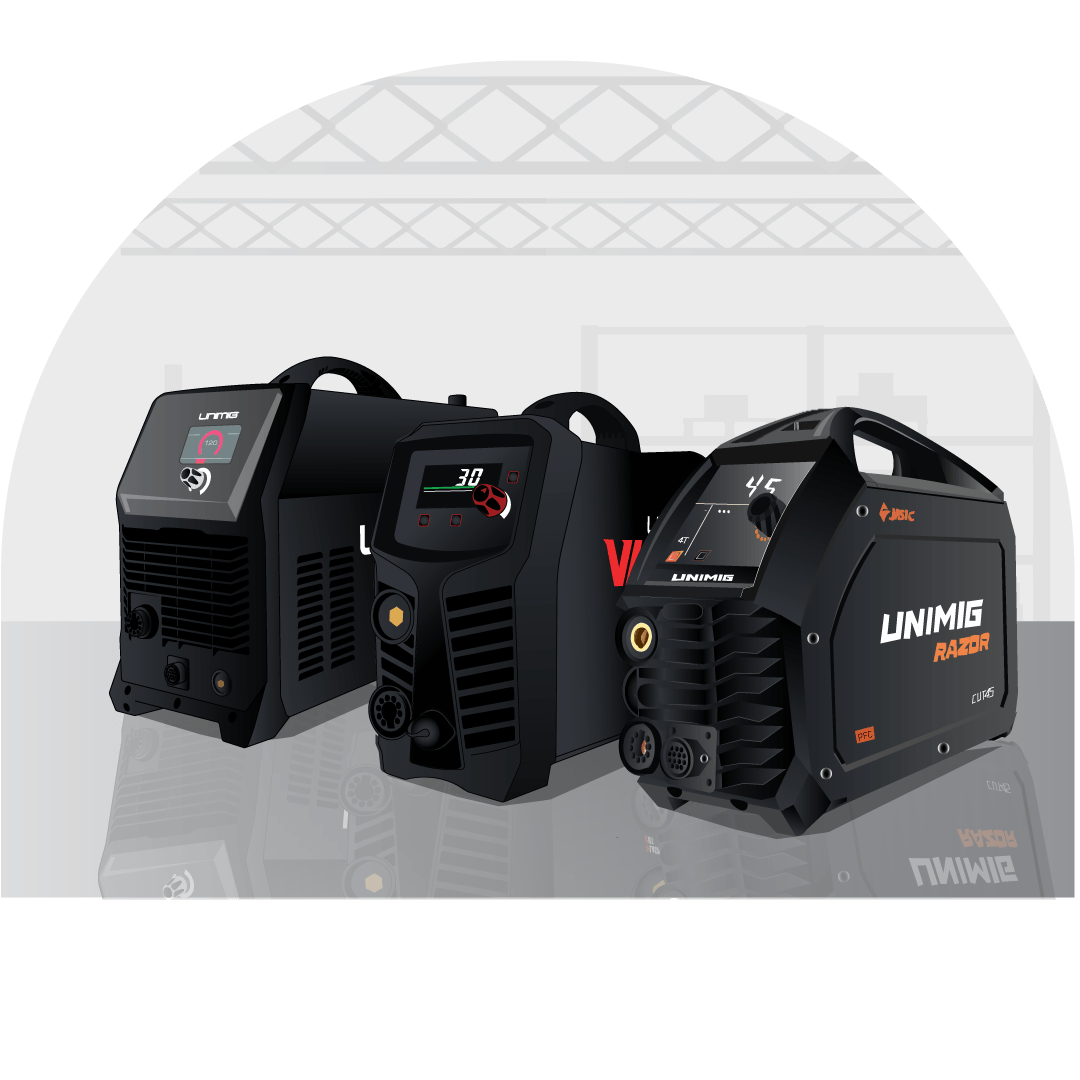

Plasma Cutters

VIPER CUT 30 Mk II Plasma Cutter

• CNC connection
• 12mm clean cut
• 14mm severance
• 10A plug

Like our welding machines, UNIMIG also has a VIPER plasma cutter. It’s lightweight and has a 10 AMP plug, so you won’t have trouble finding a socket, making it perfect for home DIY projects or for taking offsite. It can clean cut through over 10mm of steel, which is pretty thick metal when you think about it. The VIPER CUT 30 Mk II machine comes with the SC30 torch and a CNC connection port, so it’s perfect for every use case.

View more info: VIPER CUT 30 Mk II

---

RAZOR CUT 40 AIR Plasma Cutter

• Built-in air compressor
• 10mm clean cut
• 12mm severance
• 15A plug

The main feature of the RAZOR CUT 40 Air is its built-in air compressor. It is more portable than any of our other plasma cutters, and you won’t need to go out and buy an air compressor. It still requires a power source, a 15 AMP one at that, because it needs the electricity to run the added component that’s inside and ignite an arc.

The built-in compressor means that if you’re planning on doing outdoor work or any work that’s going to need distance from where you’d place an air compressor, this is the machine for you. It has the option of an external connection, so if you need a thicker cut, you can get a separate air compressor and make thicker cuts.

View more info: RAZOR CUT 40 AIR

---

RAZOR CUT 45 Plasma Cutter

• HD backlit interface
• CNC connection
• Perforated cut mode
• Torch trigger modes
• Air test
• 16mm clean cut
• 20mm severance
• Power Factor Correction (PFC)
• 15A plug

The RAZOR CUT 45 is the first in our line of professional-grade plasma cutters that don't have a built-in air compressor — although it does have an optional air compressor module. It also runs on 15A plug, so you can just as easily run it in your garage as a workshop.

The HD backlit interface makes navigating the screen a breeze, and the additional settings, including the perforated cut mode, trigger modes and air test, give you more control over every cut. Complete with PFC; this machine comes equipped with a few extra internal components that keep the current from fluctuating and allow it to run at its optimal power.

View more info: RAZOR CUT 45

---

RAZOR CUT 80 Plasma Cutter	RAZOR CUT 120 Plasma Cutter	RAZOR CUT 160 Plasma Cutter
CNC connection Torch trigger modes Air test 30mm clean cut 35mm severance	CNC connection Perforated cut mode Torch trigger modes Air test 45mm clean cut 60mm severance	CNC connection Perforated cut mode Torch trigger modes Air test 50mm clean cut 70mm severance

These three machines are generally the same, with the exception being their maximum amperages and, therefore, their maximum cutting thicknesses. These are usually recommended for a workshop or professional environment because of the three-phase power they require.

View more info: RAZOR CUT 80, RAZOR CUT 120 & RAZOR CUT 160

---

Plasma Torches

SC30 Plasma Torch	SC80 Plasma Torch	SC120 Plasma Torch	SC160 Plasma Torch
Standoff cutting	Contact cutting Standoff cutting Gouging	Contact cutting Standoff cutting Gouging	Contact cutting

These torches come with their respective machines, and they vary in terms of the pin setup that plugs into the machine, so you’ll need to keep that in mind if you want to swap to a HF torch.

When you’re buying a machine and torch, make sure you get one that has the type of consumables you want, as there are a few types of cutting available. Standoff cutting is the most common, and it gives your consumables the longest life.

View more info: SC30 Plasma Torch, SC80 Plasma Torch, SC120 Plasma Torch & SC160 Plasma Torch

---

SC80 CNC Plasma Torch	SC120 CNC Plasma Torch	SC160 CNC Plasma Torch

These torches are CNC-specific and are designed to suit their respective machines (the SCM80R also fits the CUT 45). They're designed for use on a CNC plasma table. If you’ve purchased a plasma cutter that can connect to a CNC table, then you’ll also need a compatible torch.

View more info: SC80 CNC Plasma Torch, SC120 CNC Plasma Torch & SC160 CNC Plasma Torch
