Cutting Capacity
Get a 16mm clean cut and a severance cut of 25mm on mild steel.
Cutting Modes
Cut through solid metal plate on any material.
HD Backlit Interface
This next-generation interface panel is bright and easy to read in any environment.
Active Air Passage
The active air passage works to contain the air that passes through the machine, keeping the electrical components protected from dust to improve performance and extend the life of your plasma cutter.
Inverter Technology
Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
CNC Connectivity
Not just a handheld plasma cutter, the CNC connection lets you plug in a CNC torch and run it on a CNC table, so you can choose how you use it.
Pilot Arc Start
Start your arc on any surface: painted, greasy, or rusted, or don’t start on the surface at all. A pilot arc start will ignite the arc even from a short distance away, giving you better control and longer-lasting consumables.
Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
See the difference
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Optional Air Compressor Module
Our new RAZOR CUT 45 Air Compressor makes light-duty cutting and DIY projects effortless. Designed with a sleek, compact build, it's perfect for workshops and garages where space is limited or portability is essential. This high-performance air compressor module delivers clean cuts on 6mm steel and 5mm aluminium, ensuring precision and efficiency in every job.

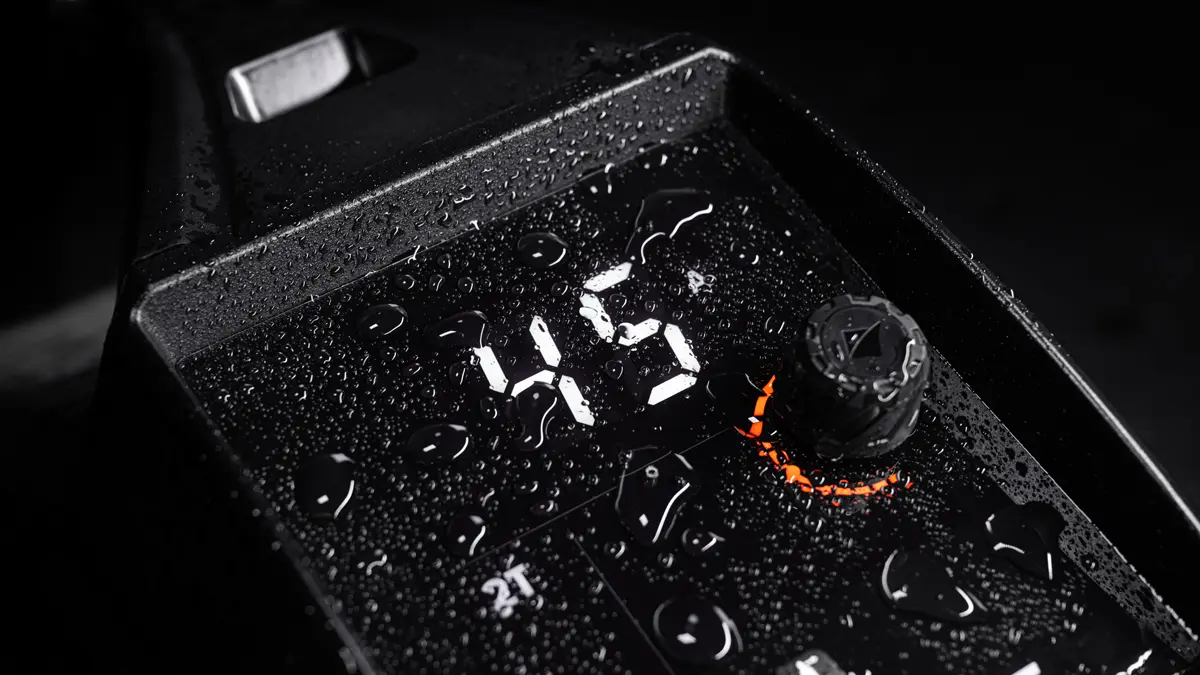

IP23S
Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
Additional Features
Air Test
Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 8kVA for this machine.
Lightweight & Portable
Weighing just 10kg, the RAZOR CUT 45 is ready to go anywhere you need it.
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
15A
Ieff (A)
13.5
Imax (A)
25.0
No Load Voltage (V)
300.0
Protection Class
IP23S
Insulation Class
H
Minimum Generator (kVA)
8.0
Dinse Connector
10/25
Standard
AS 60974.1
Warranty
5 Years
Dimensions (LxWxH)
546 x 169 x 341mm
Weight (kg)
10.00
Downloads
RAZOR CUT 45 Manual
3.02 MB
RAZOR CUT 45 Info Sheet
0.47 MB
