Ultimate TIG Welding
Weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).
Foot Control Ready
The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement.
Inverter Technology
Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
10A Plug
Plug in and play. The 10A plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere.
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.
The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
Additional Features
High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Lift Arc Start TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 9kVA for this machine.
Lightweight & Portable

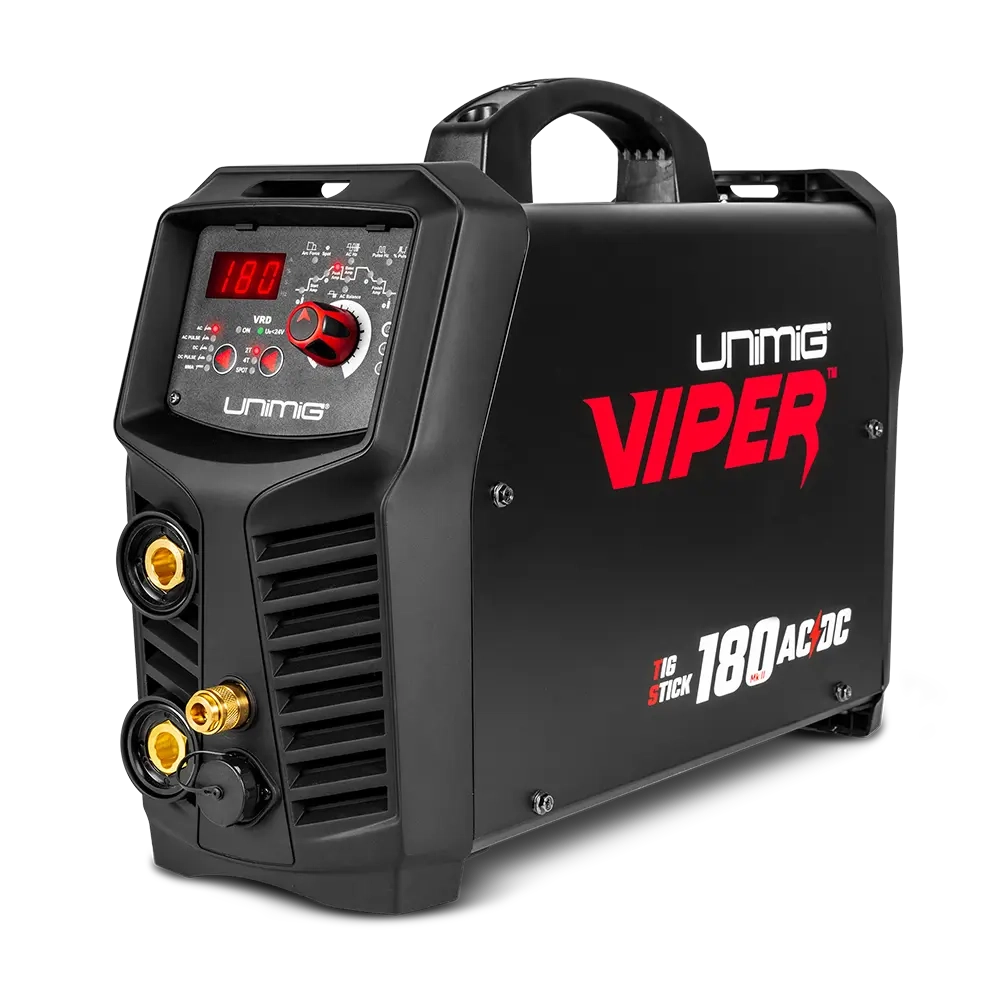

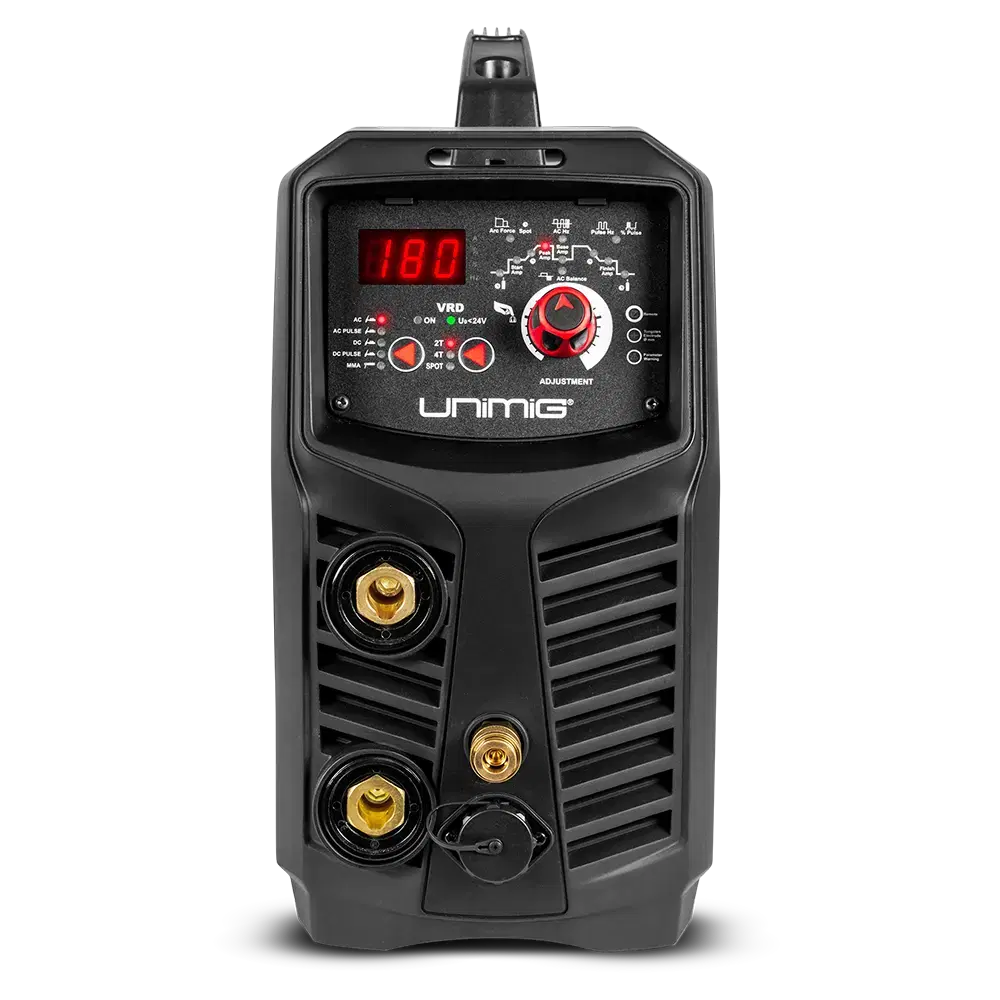

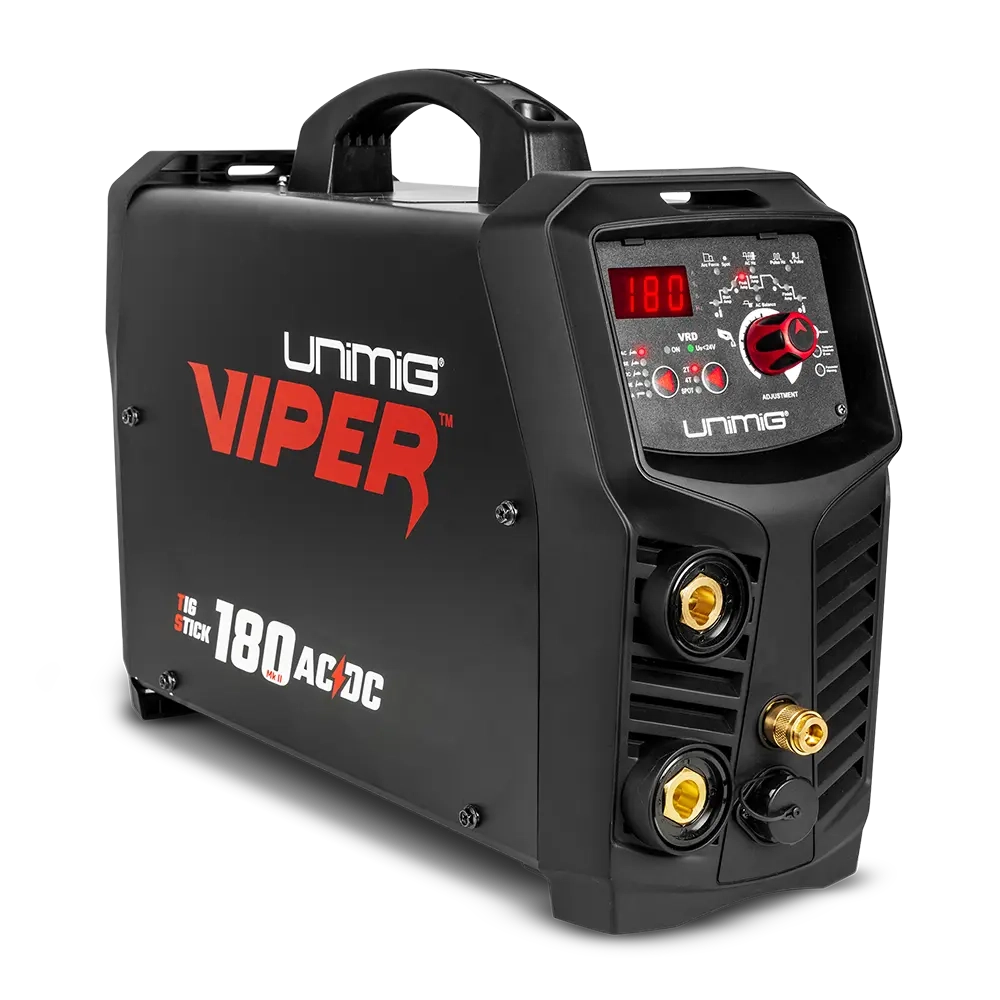

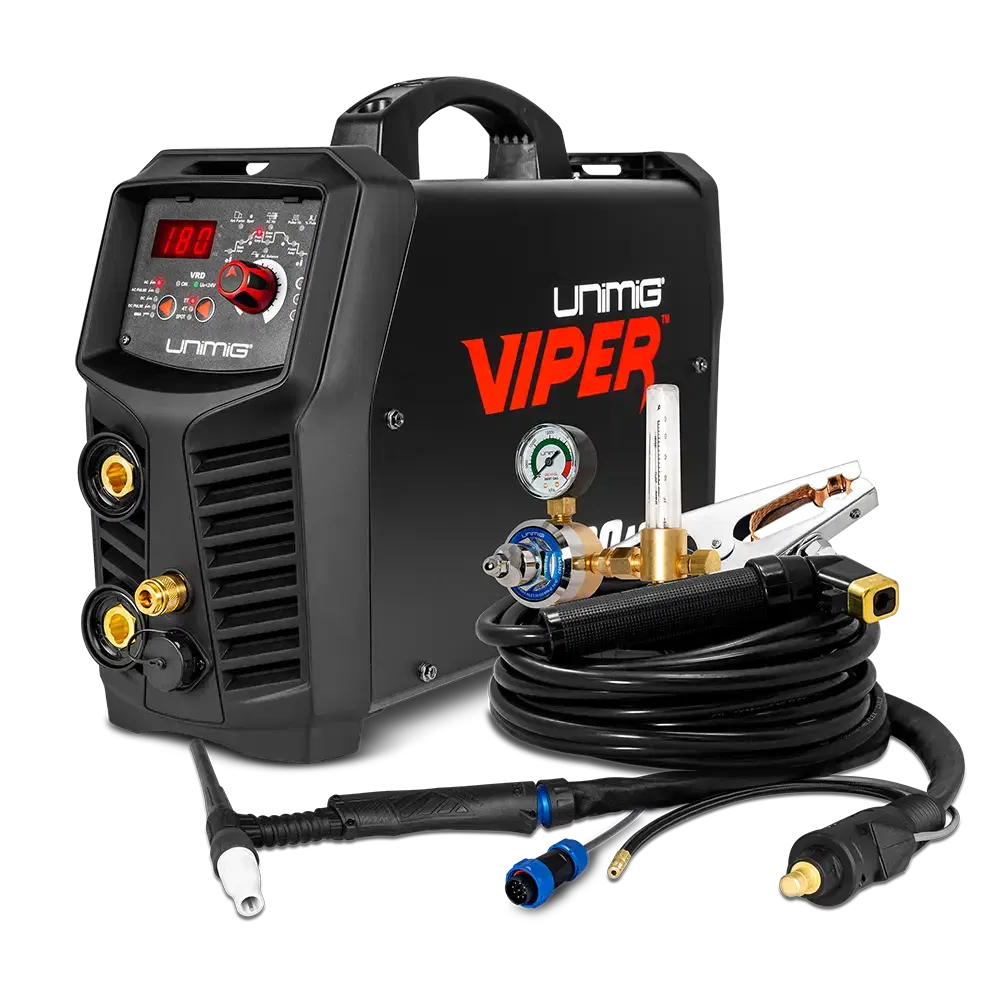

Weighing just 11kg, the VIPER 180 AC/DC Mk II is ready to go anywhere you need it.
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
10A
Ieff (A)
8.9
Imax (A)
23.0
No Load Voltage (V)
70.0
Protection Class
IP21S
Insulation Class
B
Minimum Generator (kVA)
9.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
2 Years
Weight (kg)
11.00
Dimensions (LxWxH)
480 x 166 x 344mm
Suitable Materials
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron
Downloads
VIPER TIG 180 AC/DC Mk II Manual
7.45 MB
VIPER TIG 180 AC/DC Mk II Info Sheet
0.27 MB
