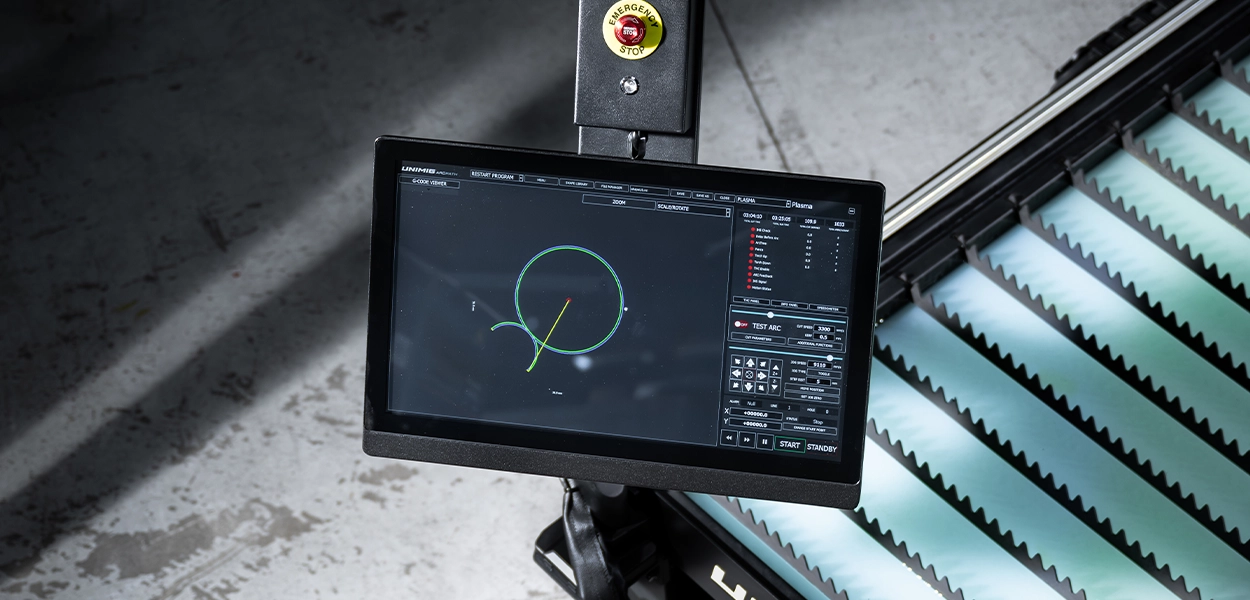

UNIMIG Arc Path CNC Control Software

The 21-inch touchscreen computer comes mounted on a fully adjustable arm and pre-installed with our in-house, custom-designed UNIMIG Arc Path CNC Control software. Arc Path accepts G-Code Design files, or alternatively, you can plug in a USB or a shared network folder and load your own files. We’ve also included CAM nesting software powered by FLCAM that accepts DXF files and a post-processor script is available to allow seamless CAM output from Autodesk Fusion.

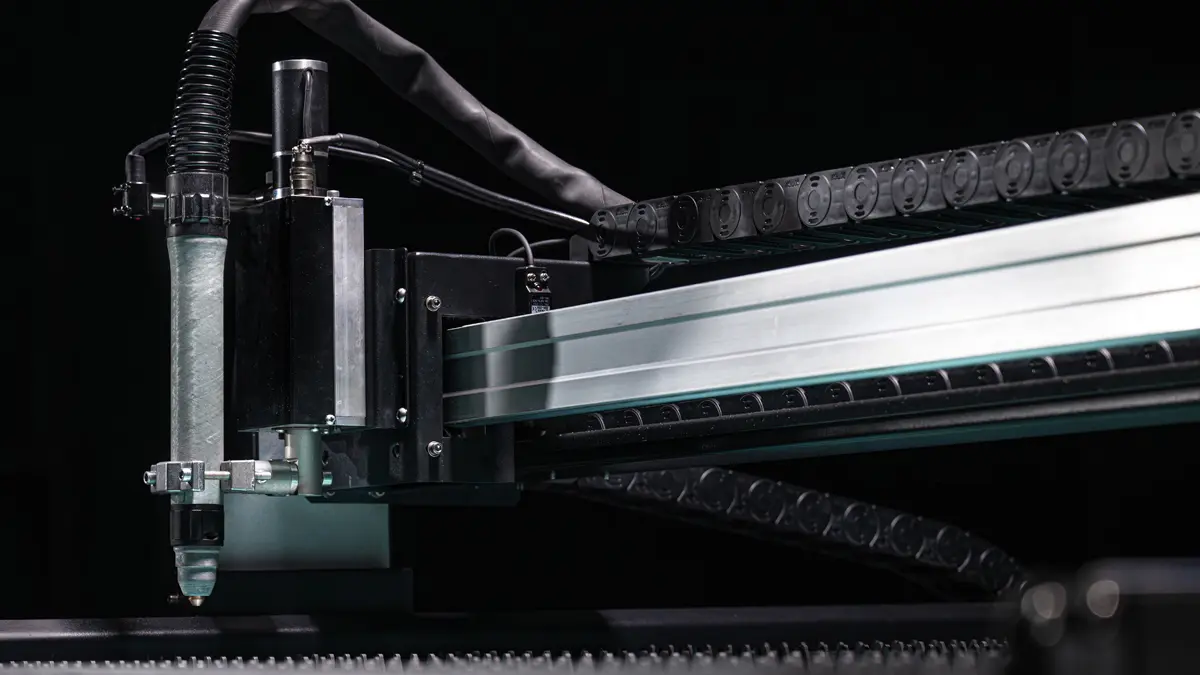

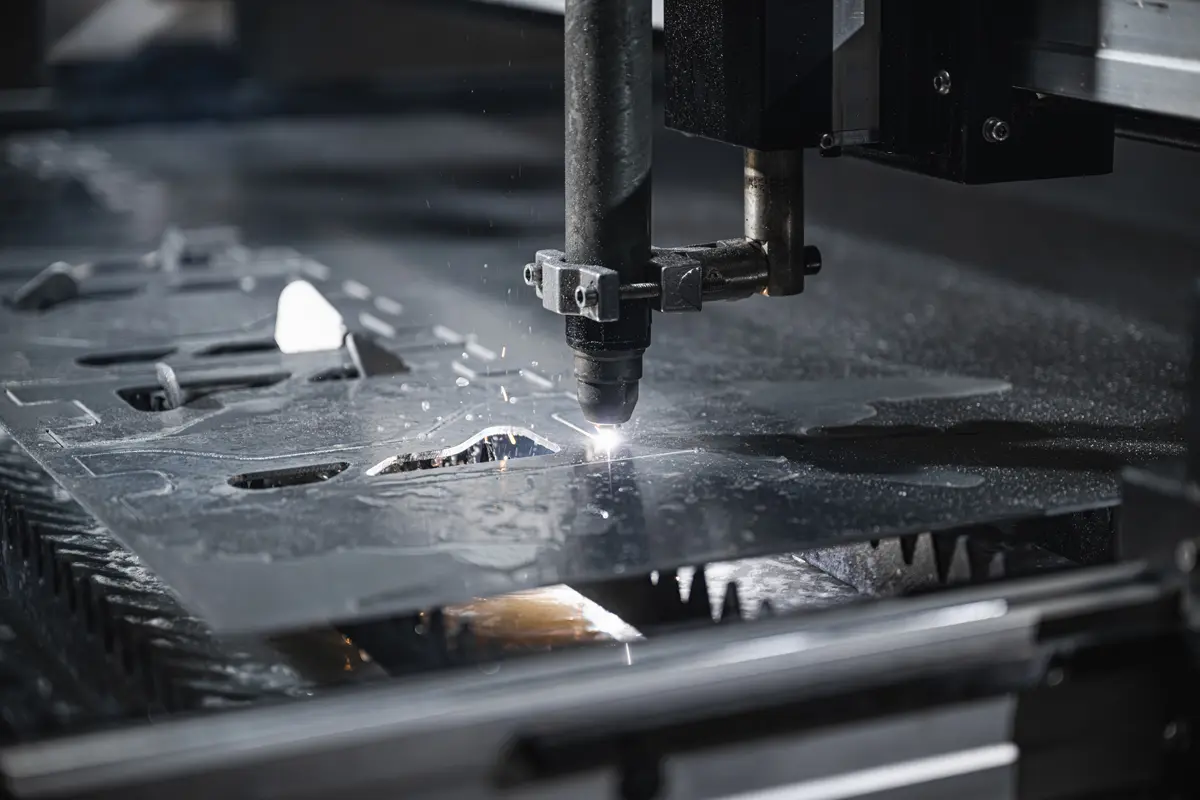

Automatic Torch Height Control

The Automatic Torch Height Control continuously monitors and adjusts the torch height in real time to maintain the optimal height while cutting over wavy or warped material. By maintaining the optimal height, you get a consistent cutting quality, minimal dross, increased consumable life and faster cutting speeds.

True Cut Size

A true 1.2×1.2m half-sheet cut size. The gantry will travel 1.23 by 1.22 metres on the STEALTH 1200, so you can guarantee you’ll get the full size of the table to cut across.

Built-In Water Bed With Slat Slots

The built-in water bed on the STEALTH CNC table works to absorb fumes and sparks, giving you a cleaner workspace. With laser welded joints, the water bed is completely leak-free. It comes with two ball valve controlled drainage points with standard hose fittings for quick and easy draining. Additionally, the tables come with laser-cut mild steel slats, and the slat slots mean you can easily replace slats that become warped or damaged.

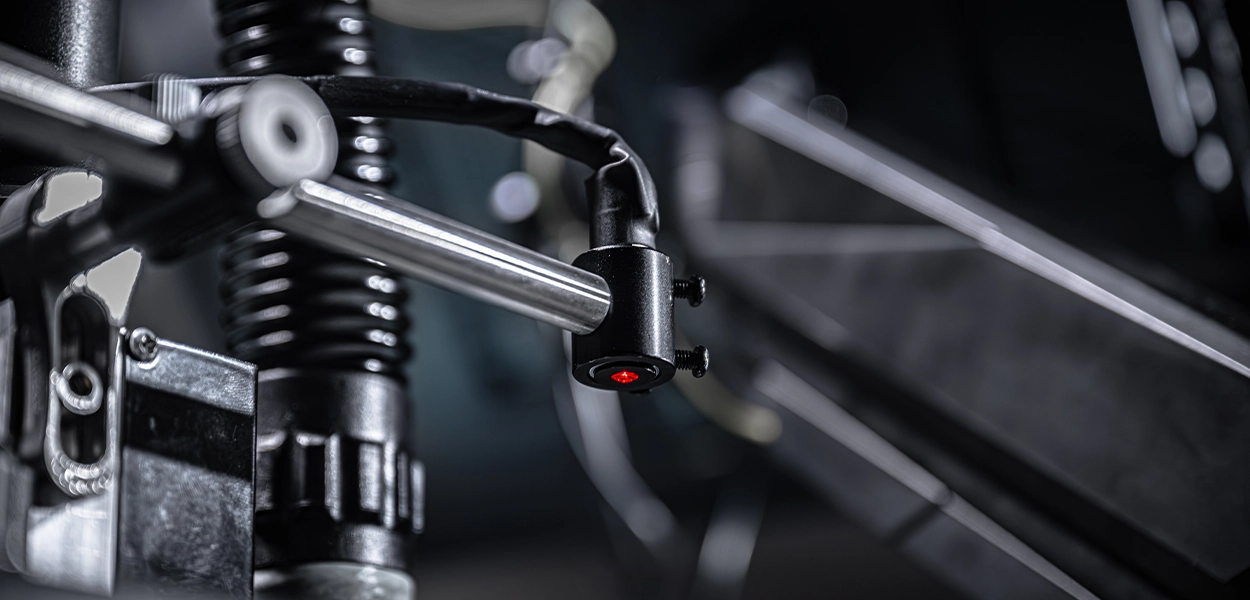

Adjustable Sighting Laser

Each STEALTH CNC table is equipped with an adjustable offset sighting laser, ensuring precise alignment and eliminating the guesswork for pierce locations and plate alignment. No need for expensive add-on accessories, the STEALTH CNC table comes fully equipped with all necessary features right from the start, providing you with a clear, constant visual of where the cut will start every time.

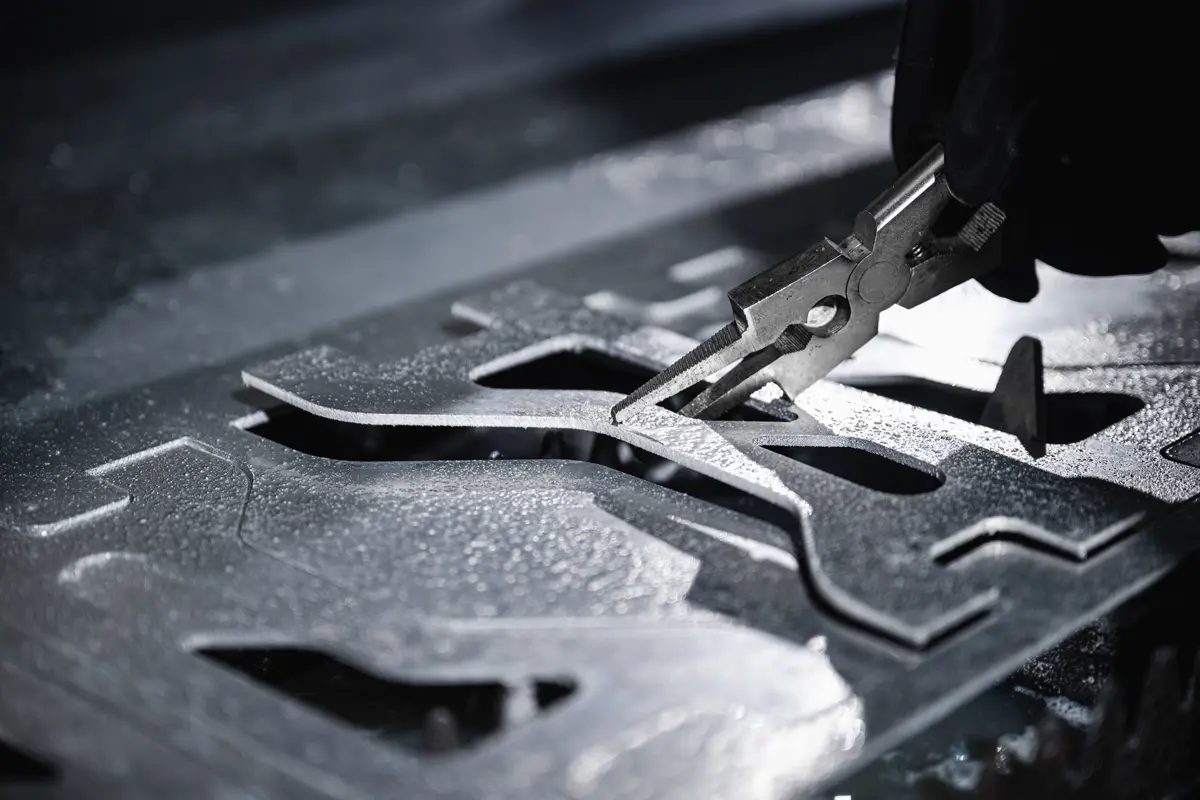

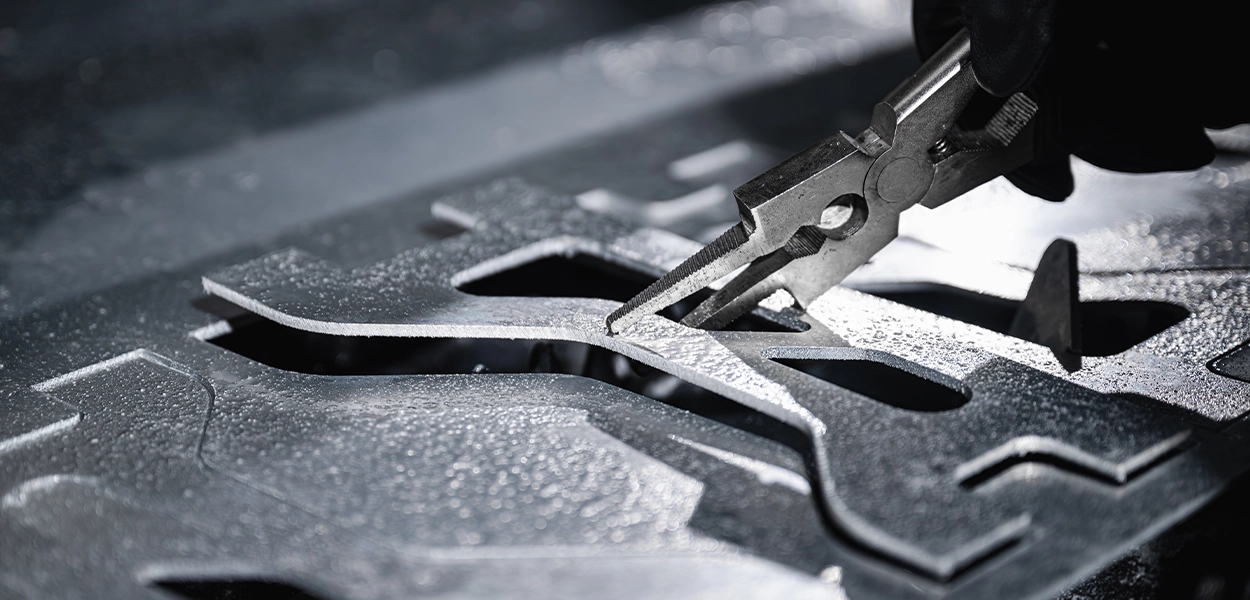

Maximise Your Production

Let the STEALTH CNC table handle the heavy lifting so you can increase your productivity. The STEALTH 1200 CNC allows you to produce more parts and projects efficiently. Optimise your cuts and nest parts on full sheets to minimise loading time and reduce material waste.

Automatic Collision Detection & Limiter Switches On All Axes

With limiter switches on all axes and an automatic collision detection system, the STEALTH table uses sensors, software algorithms, and real-time data processing to detect and prevent potential collisions and stop it from exceeding its predefined range of motion.
