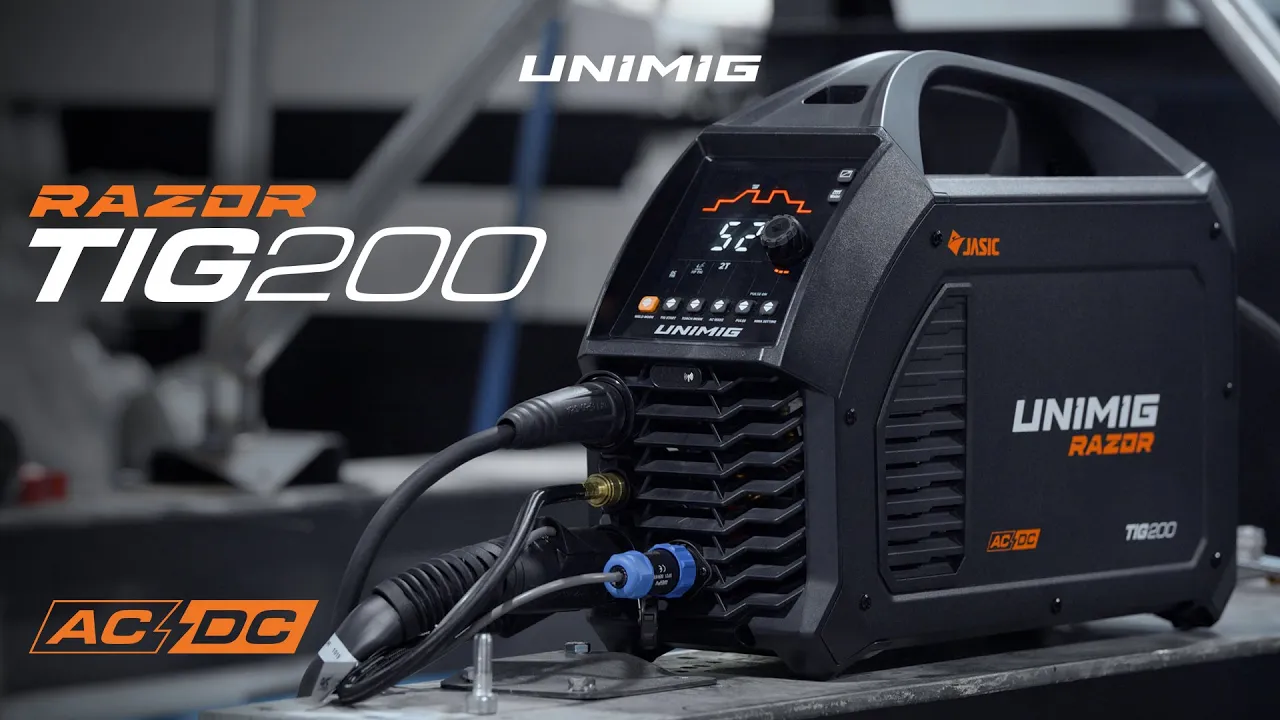

Feature Video

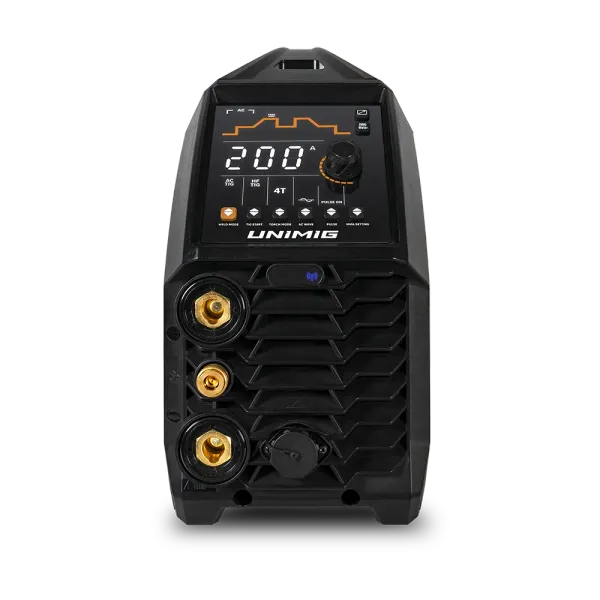

HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.
Ultimate TIG Welding
Weld every kind of metal. With the ability to run on an Alternating Current (AC) you’re able to weld aluminium as effortlessly as mild and stainless steels on a Direct Current (DC).
Multiple AC Waveforms

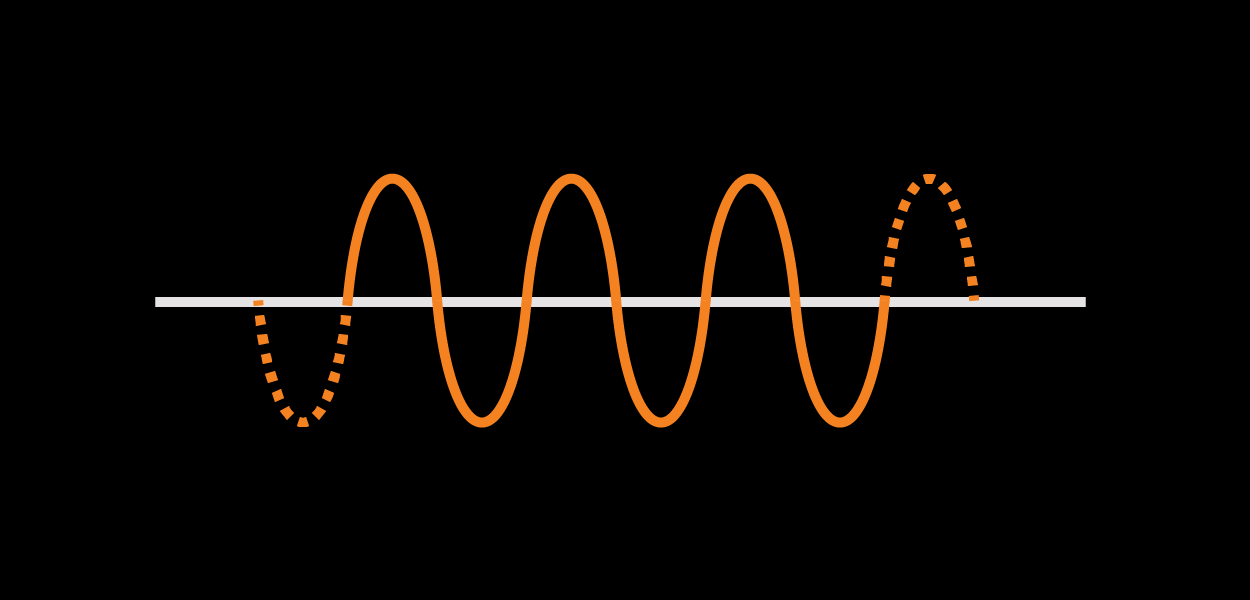

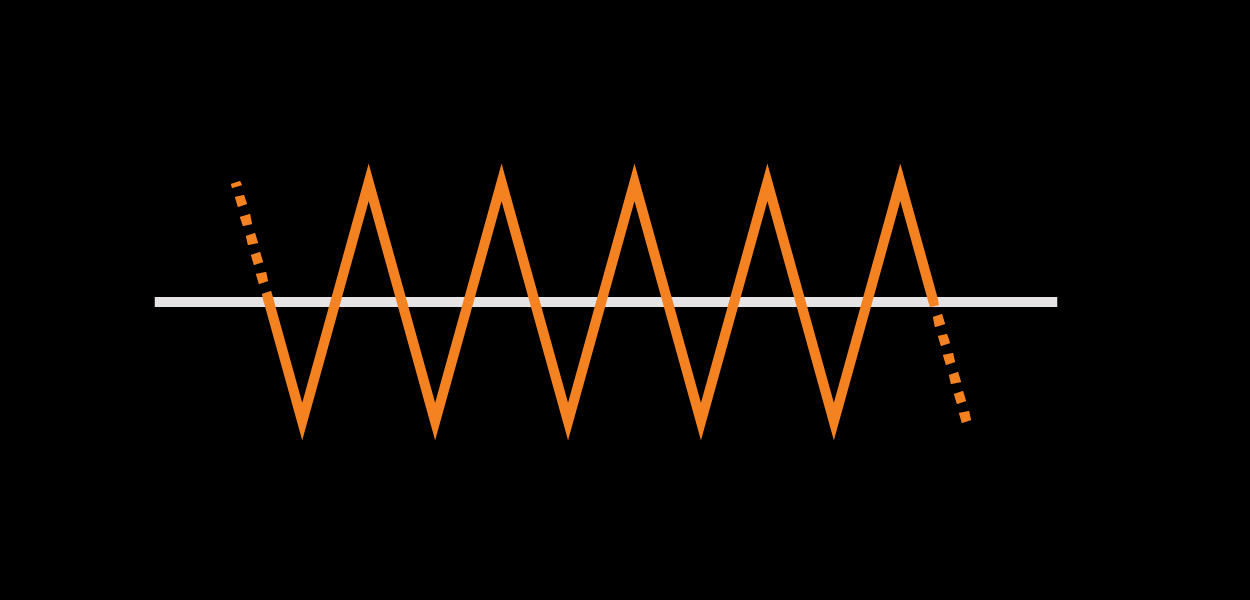

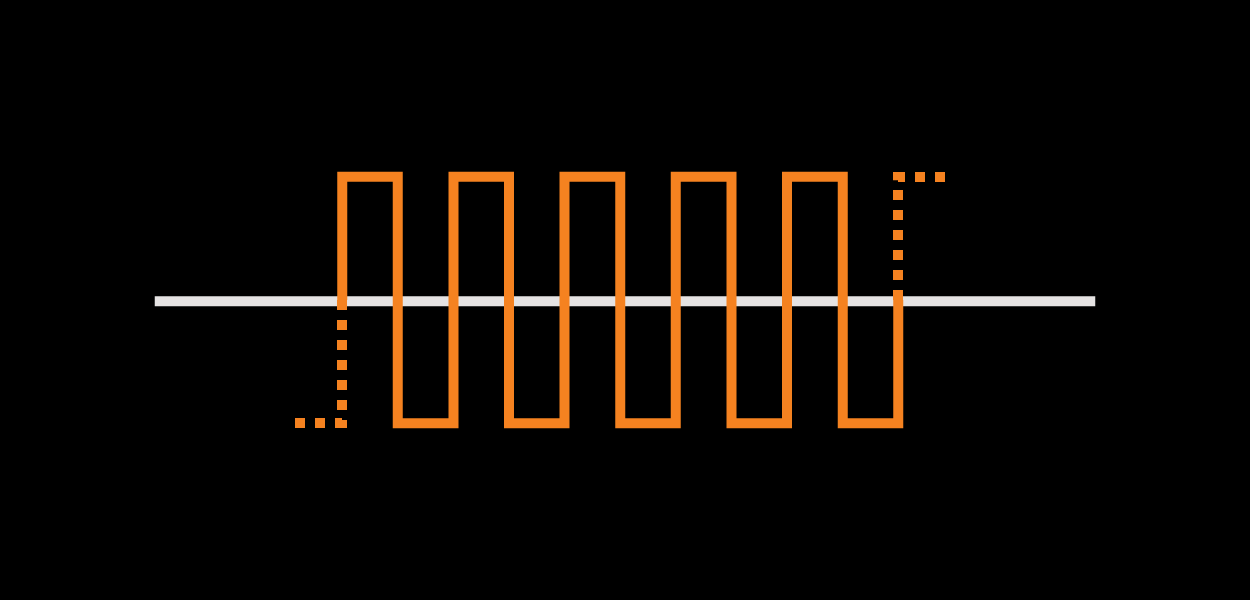

Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
The slow, smooth transition between positive and negative provides a consistent weld and good wetting in the toes.
Mixed AC/DC
Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
Accessories

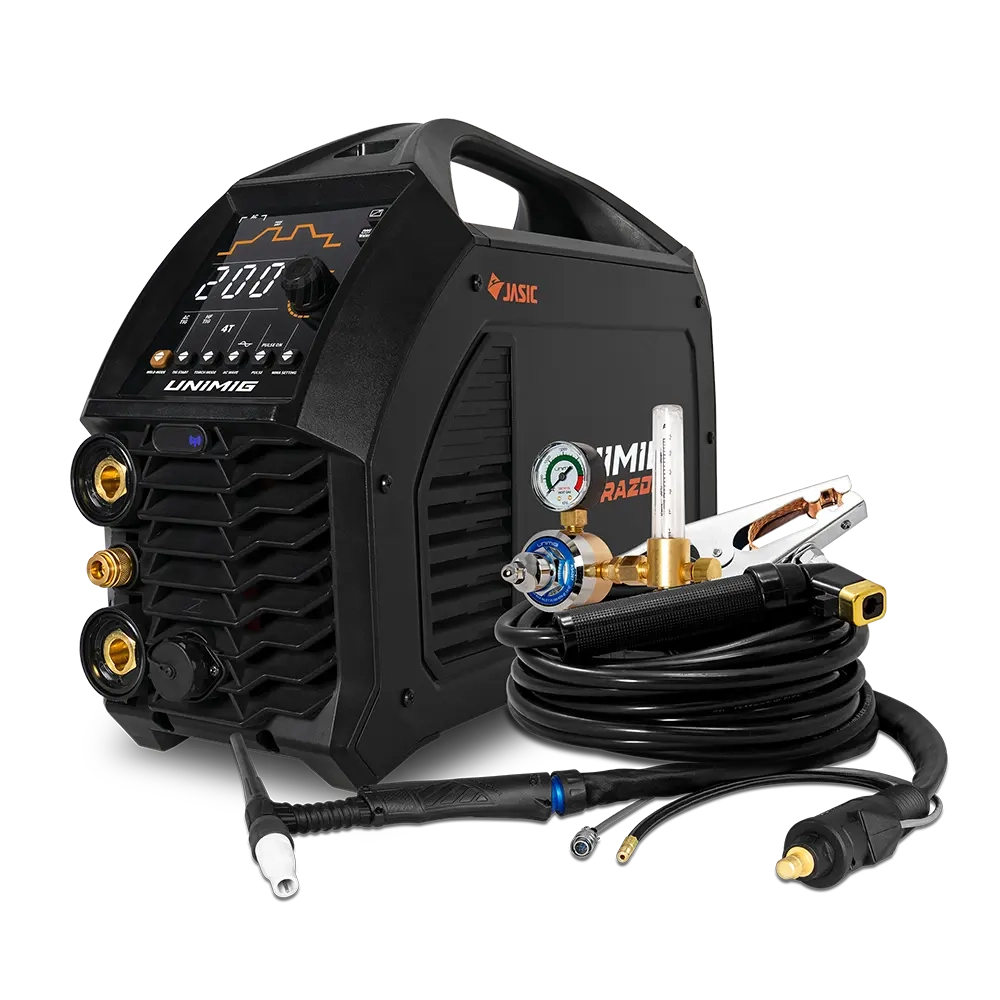

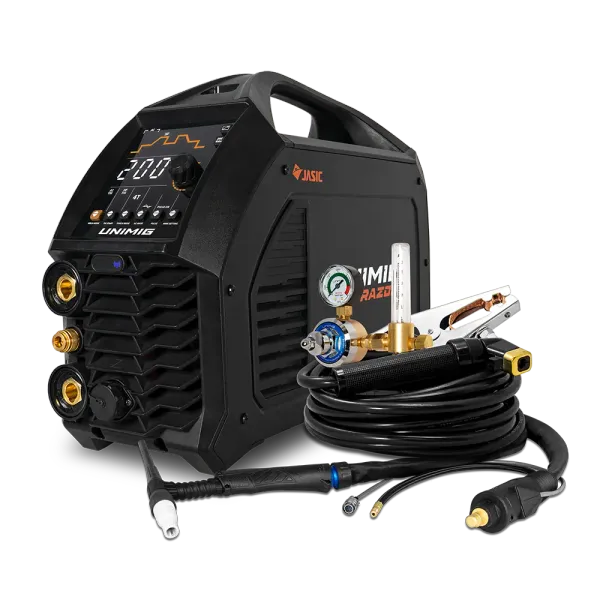

Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG or MMA accessories to your welder.
Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement. Wireless and wired options available.
Inverter Technology
Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
See the difference
10A Plug
Plug in and play. The 10A plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Active Air Passage
The active air passage works to contain the air that passes through the machine, keeping the electrical components protected from dust to improve performance and extend the life of your welder.

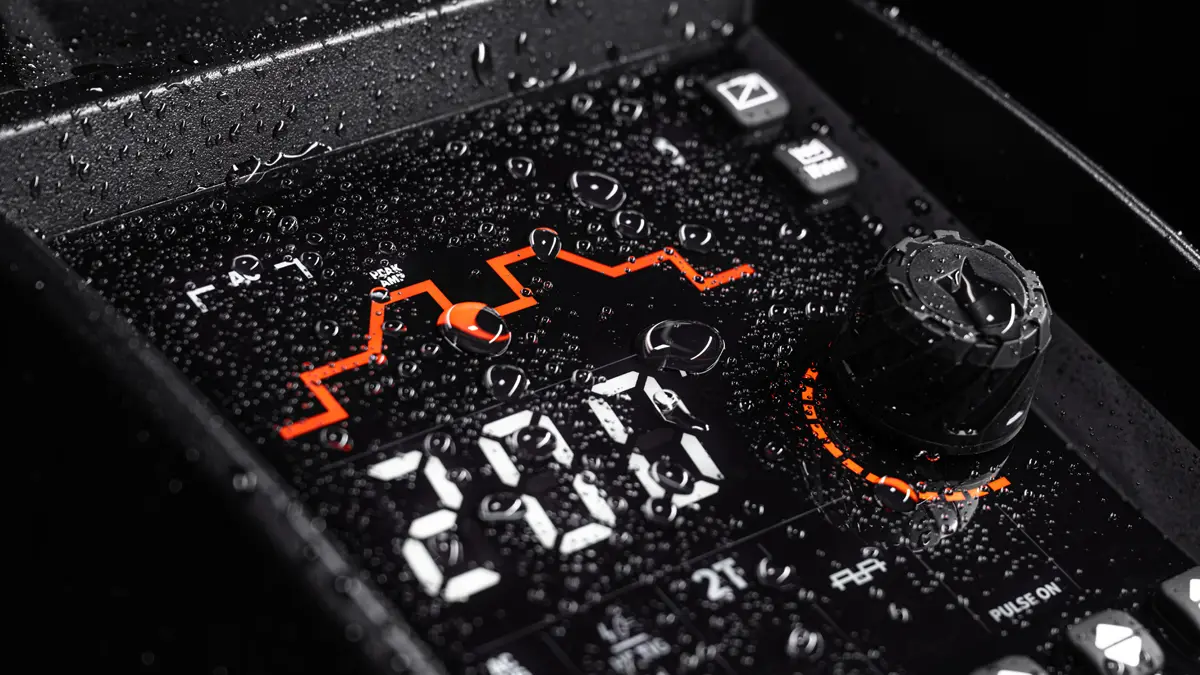

IP23S
Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.
The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
Additional Features
High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Lift Arc Start TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend an 8kVA for this machine.
Lightweight & Portable

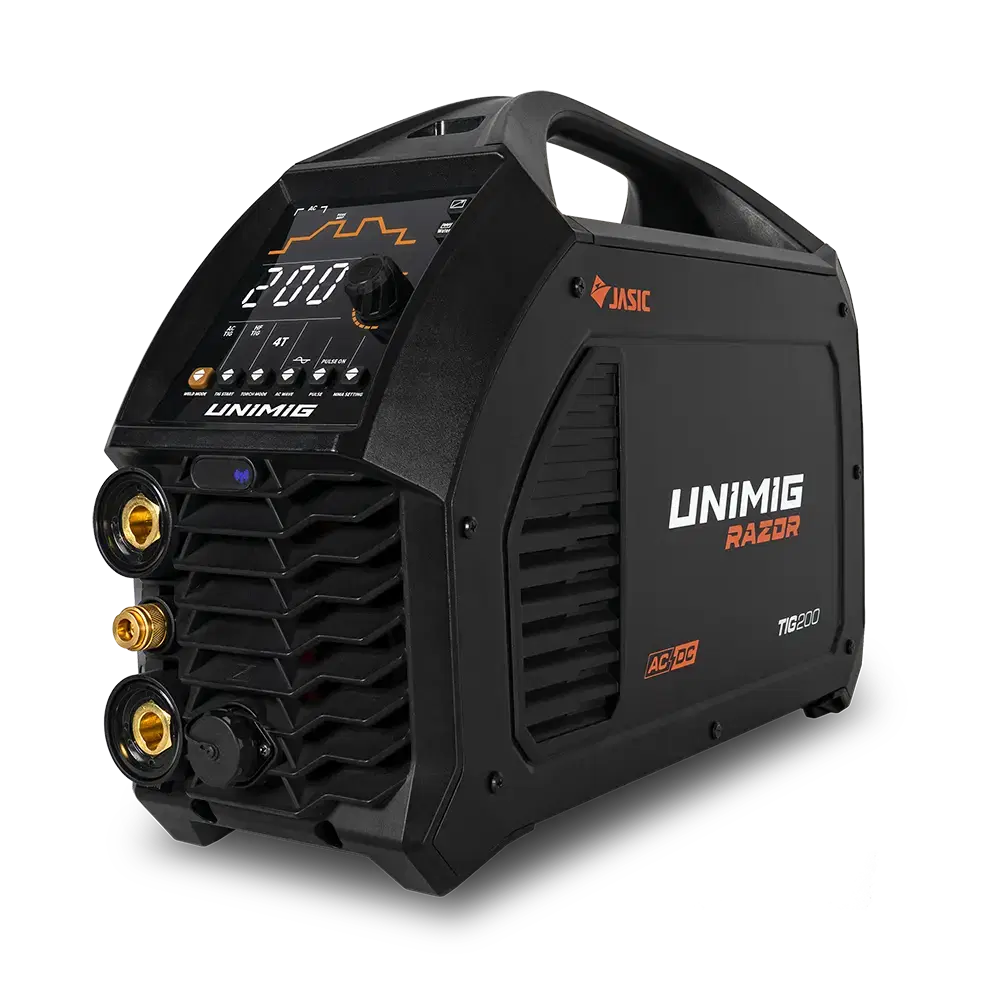

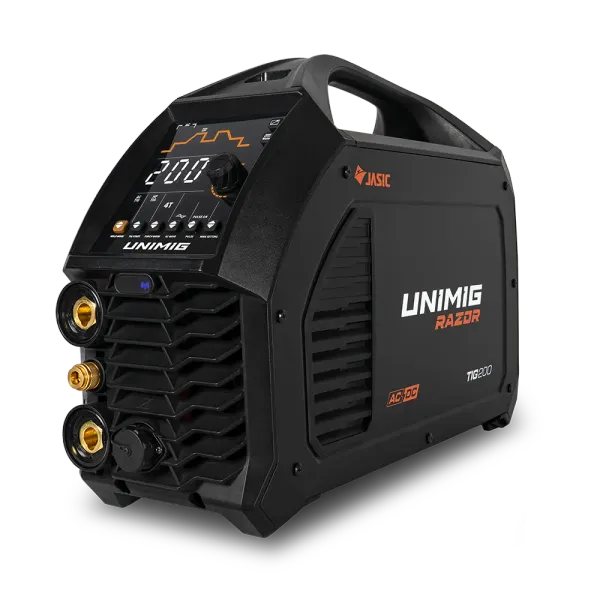

Weighing just 11.7kg, the RAZOR TIG 200 AC/DC is ready to go anywhere you need it.
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
10A
Ieff (A)
9.5
Imax (A)
21.1
No Load Voltage (V)
65.0
No Load Voltage with VRD Active (V)
11.5
Protection Class
IP23S
Insulation Class
H
Minimum Generator (kVA)
8.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Weight (kg)
11.7
Dimensions (LxWxH)
500 x 170 x 340mm
Suitable Materials
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron
