Smart-Set MIG
Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
HD Backlit Interface
This next-generation interface panel is bright and easy to read in any environment.
Multi-Process
Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.
4 Geared Digital Wire Drive
Experience unparalleled accuracy with the Digital Geared Wire Drive system. Designed to sustain a consistent arc in varying conditions and with different wire types, it ensures an accurate wire feed speed. With this system, achieving precision in every welding task is effortless. Paired with four geared drive rollers, there’s more power pushing the wire, improving the wire feeding, especially in longer torches.
Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
See the difference
Digital Control MIG Torch
Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.
Accessories
Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG or STICK accessories to your welder.
Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
Inverter Technology
Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Active Air Passage
The active air passage works to contain the air that passes through the machine, keeping the electrical components protected from dust to improve performance and extend the life of your welder.

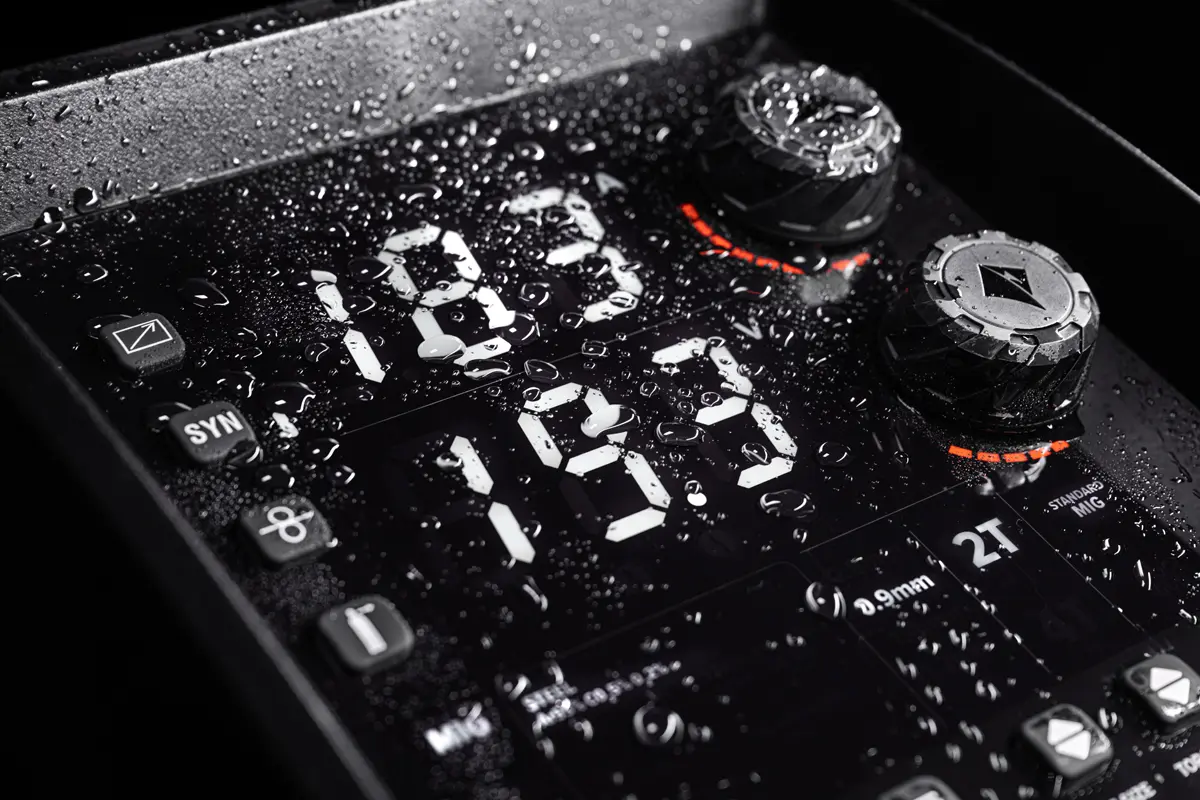

IP23S
Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.
The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
Additional Features
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 12kVA for this machine.
Portable

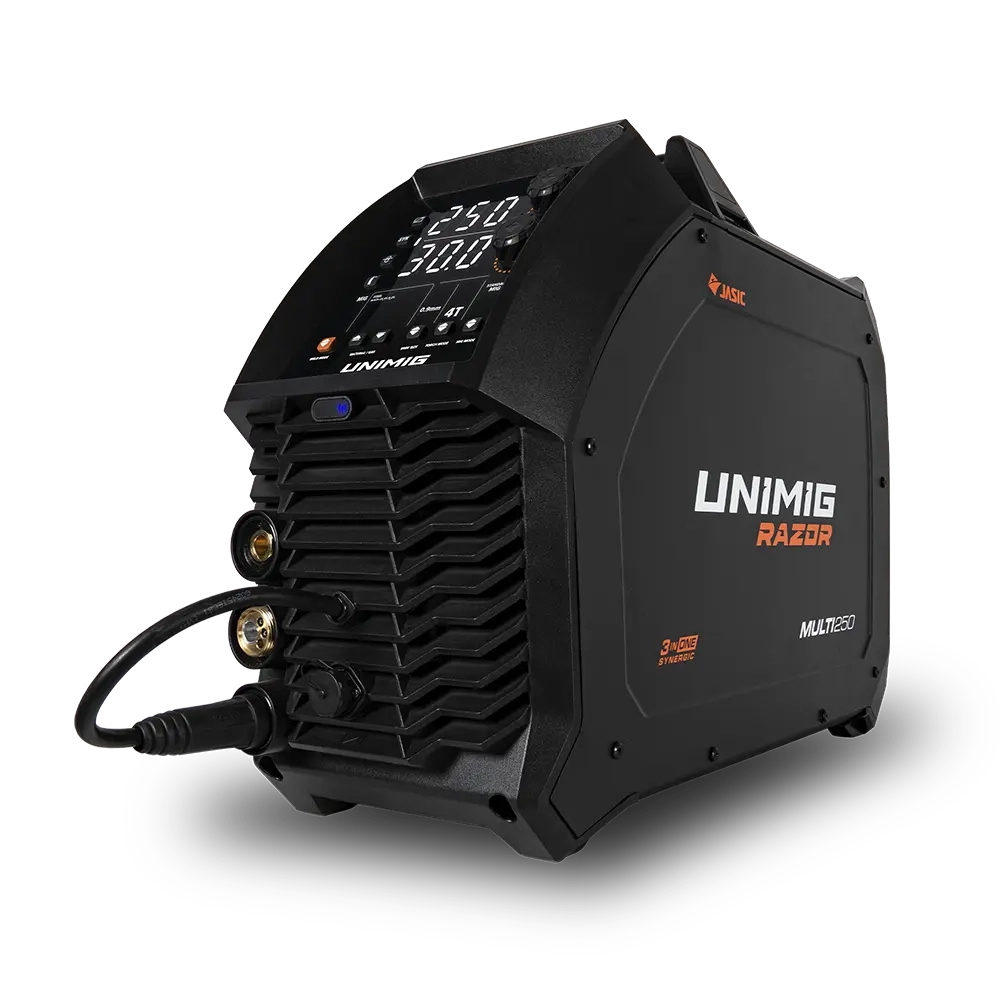

The RAZOR MULTI 250 comes in a convenient carry case, ready to go anywhere you need it.
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
15A
leff (A)
15.0
Imax (A)
35.0
No Load Voltage (V)
65.0
No Load Voltage with VRD Active (V)
10.1
Protection Class
IP23S
Insulation Class
H
Minimum Generator (kVA)
11.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Weight (kg)
25.50
Dimensions (LxWxH)
700 x 280 x 511mm
Suitable Materials
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
Downloads
RAZOR MULTI 250 Manual
14.77 MB
RAZOR MULTI 250 Setup Guide
0.53 MB
