U11008K

RAZOR MULTI 220 Welder

$1,665.00

RAZOR MULTI 220 Welder

$1,665.00

A professional machine in a portable case with all the power, the RAZOR MULTI 220 is perfect for the worksite or the workshop.

Quick and easy setup with synergic MIG programs
3-in-1 multi-process machine so you can MIG, TIG & STICK
Geared wire drive system for smooth wire feeding
A 5-year warranty to reflect our confidence in this machine

U11008K

FIND A STORE

ADD TO WISHLIST

15 AMP PLUG

Connect to a 15 AMP outlet.

3 IN 1 MULTIPROCESS

Weld in MIG, TIG and STICK.

GEARED WIRE DRIVE

For smoother wire feeding.

SPOOL GUN READY

For softer wires, such as aluminium.

Product No: U11008K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

Ieff (A)

14.7

RATED OUTPUT

30A/15.5V - 220A/25V

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP23S

INSULATION CLASS

MINIMUM GENERATOR (kVA)

12.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze"

WARRANTY (Years)

MIG Specifications

MIG WELDING CURRENT RANGE

30-220A

MIG DUTY CYCLE @ 40°C

15% @ 220A / 60% @ 110A / 100% @ 85A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

Trigger Controlled DC Lift Arc

TIG WELDING CURRENT RANGE

5-220A

TIG DUTY CYCLE @ 40°C

15% @ 220A / 60% @ 110A / 100% @ 85A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-180A

STICK DUTY CYCLE @ 40°C

15% @ 180A / 60% @ 90A / 100% @ 70A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

Size & Weight

DIMENSIONS (mm)

560×220×400

WEIGHT (kg)

15.1

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

YES

SPOOL GUN CONNECTION

YES

FOOT CONTROL CONNECTION

YES

BURNBACK ADJUSTMENT

YES

WIRE INCH

YES

INDUCTANCE CONTROL

YES

THERMAL OVERLOAD PROTECTION

YES

RAZOR MULTI 220 Welder
4m M24 Digital MIG Torch
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Twin Gauge Argon Regulator
1.8m Gas Hose with fittings
Operating Manual
0.8-0.9mm V Groove Roller
0.8-0.9mm F Groove Roller
1.0-1.2mm U Groove Roller

Here you’ll find the latest manuals, guides & product/parts information.

RAZOR MULTI 220 Info Sheet

RAZOR MULTI 220 Manual

UNIMIG is pleased to offer a 5-year warranty on the RAZOR MULTI 220*.

UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.

*Please note warranty only applies to the power source only

RECOMMENDED ACCESSORIES

220A Digital Spool Gun U41014

U41014

$909.00

LEARN MORE

ARC TORCHOLOGY T2 TIG Torch - 4m EURO

$345.00

LEARN MORE

BINZEL 24 Style MIG Torch Consumable Starter Kit

UMSK24

$62.95

LEARN MORE

Wireless Foot Pedal U51019

U51019

$835.00

LEARN MORE

RAZOR MULTI 220 Welder

RAZOR MULTI 220 Welder

15 AMP PLUG

3 IN 1 MULTIPROCESS

GEARED WIRE DRIVE

SPOOL GUN READY

HD Backlit Interface

Synergic MIG Control

Multi-Process Welding

Digital Control MIG Torch

Spool Gun Ready

Gas & Gasless MIG

Geared Wire Drive

Trigger Controlled DC Lift Arc TIG

Advance MMA Features

Smart Fan

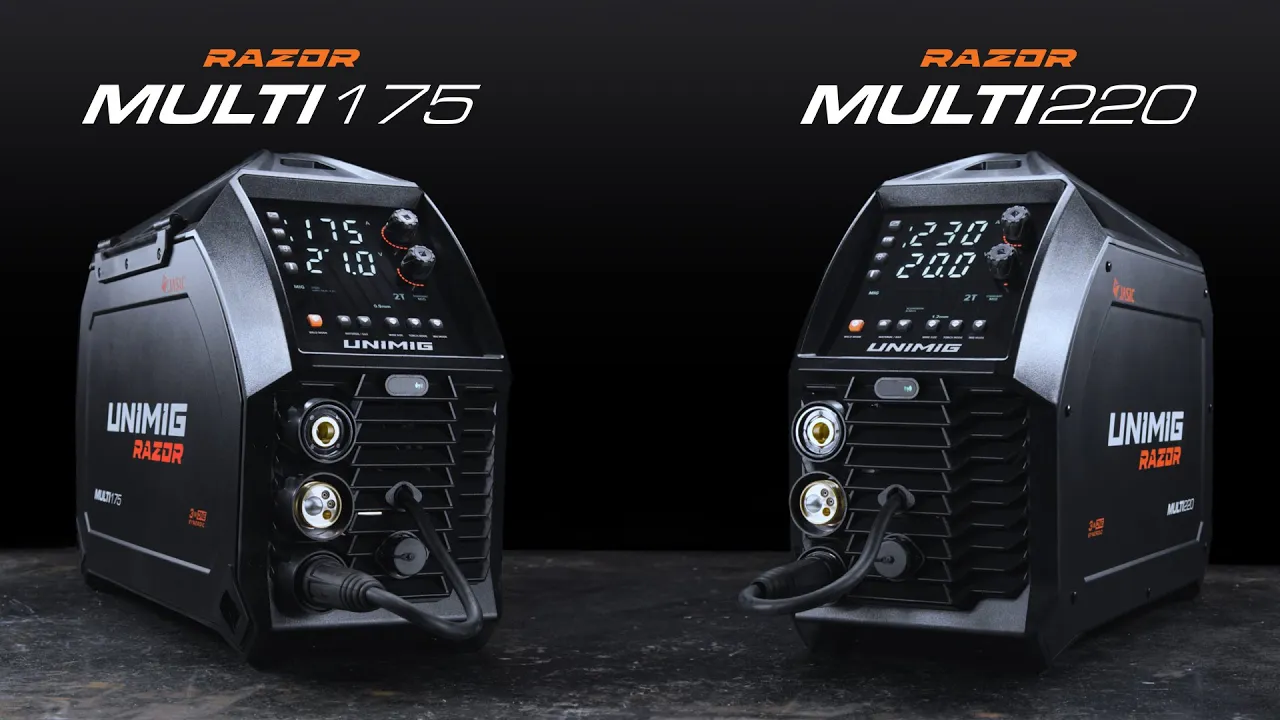

RAZOR MULTI 220 Feature Video
