Longer Torch Consumable Life
Get superior life out of every torch consumable. Designed for maximum performance, you’ll get 6x longer life with Arc Torchology consumables.
The Arc Torchology contact tips lasted up to 6x longer, withstanding the maximum amperage for 30 hours vs the Binzel 501D's 5 hours.
Less Maintenance & Downtime
Spend less time cleaning your consumables and have them last longer with 90% less spatter adhesion.
The Arc Torchology contact tips had 90% less spatter adhesion on the tip's face, with only 9% spatter vs the Binzel 501D's 100%.

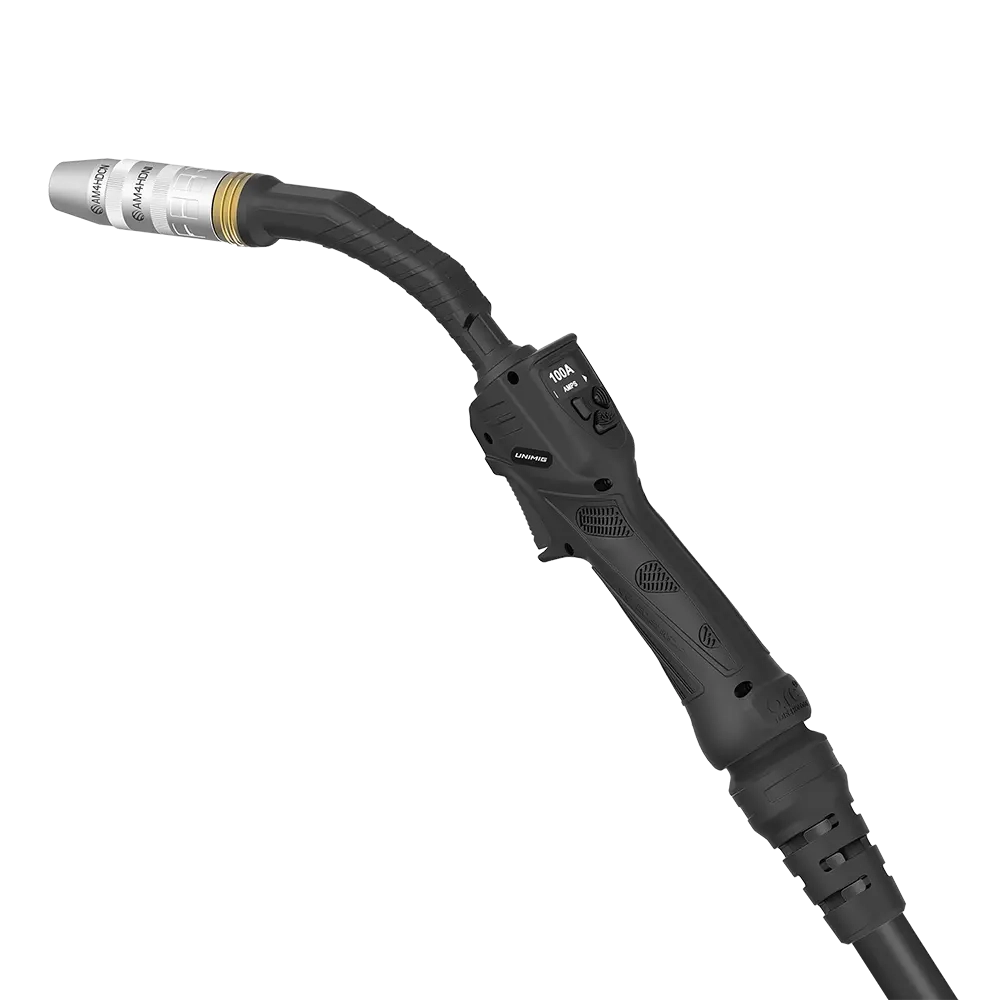

Digital Control Module
The control pad lets you adjust your parameters while welding without disturbing the filler metal and weld puddle.
Duraflex Performance Cable
Get ultimate cable flexibility and the highest heat and abrasion resistance. The outer cable jacket is constructed from cross-link polymers, providing a tear-proof layer with a burn threshold of 375°C.
Rear Cable Support
The extra-durable cable support system keeps your torch housing protected and intact no matter what angle the torch lead is bent at, improving wire-feeding consistency.
Additional Features
0.8-1.2mm Wire Size
Capable of welding a wide range of wire sizes, from as thin 0.8mm to as thick as 1.2mm.
350A Output
Perform effortlessly on every weld. With a rated output of up to 350 amps, it delivers superior performance.
Specifications
Cooling Method
Air-Cooled
Maximum Output
350A
Duty Cycle @ 40°C - CO2
60% @ 350A
Duty Cycle @ 40°C - Mixed Gas
60% @ 320A
Wire Size
0.8-1.2mm
Lengths (m)
3, 4
Standard
EN 60974-7
