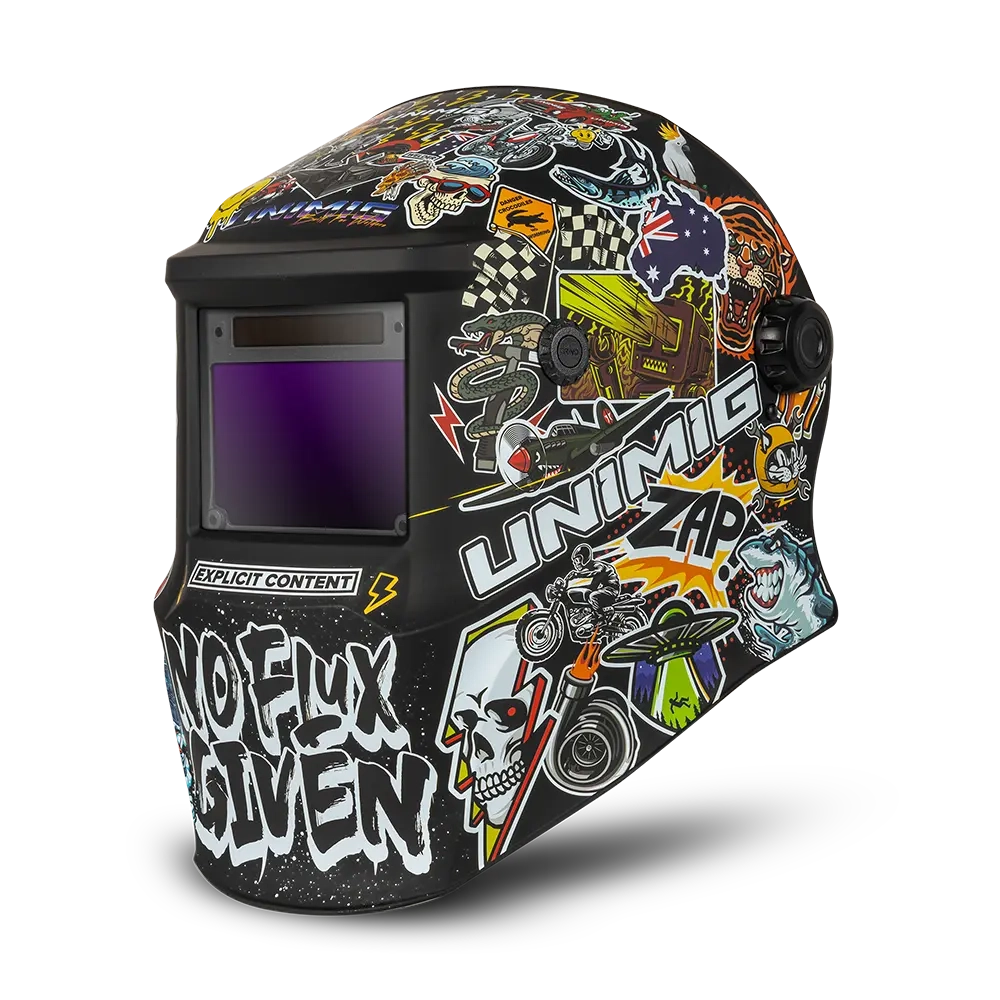

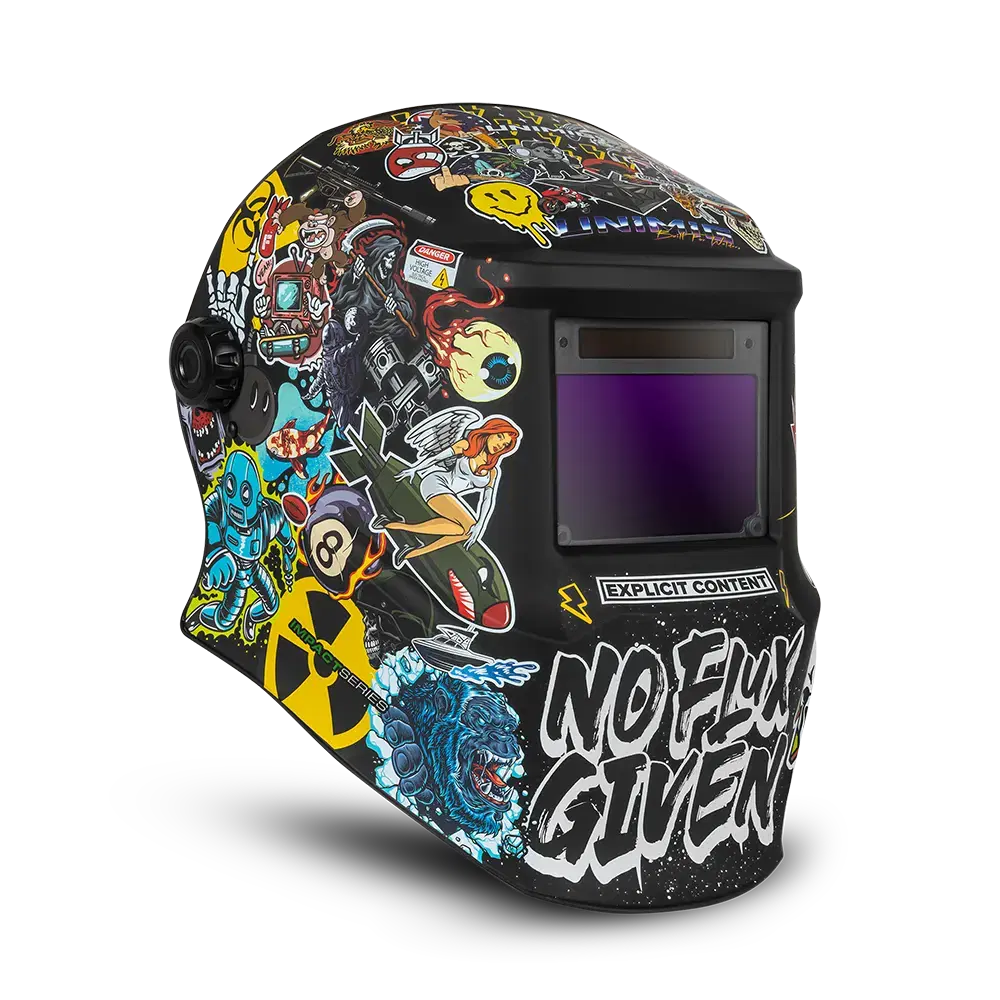

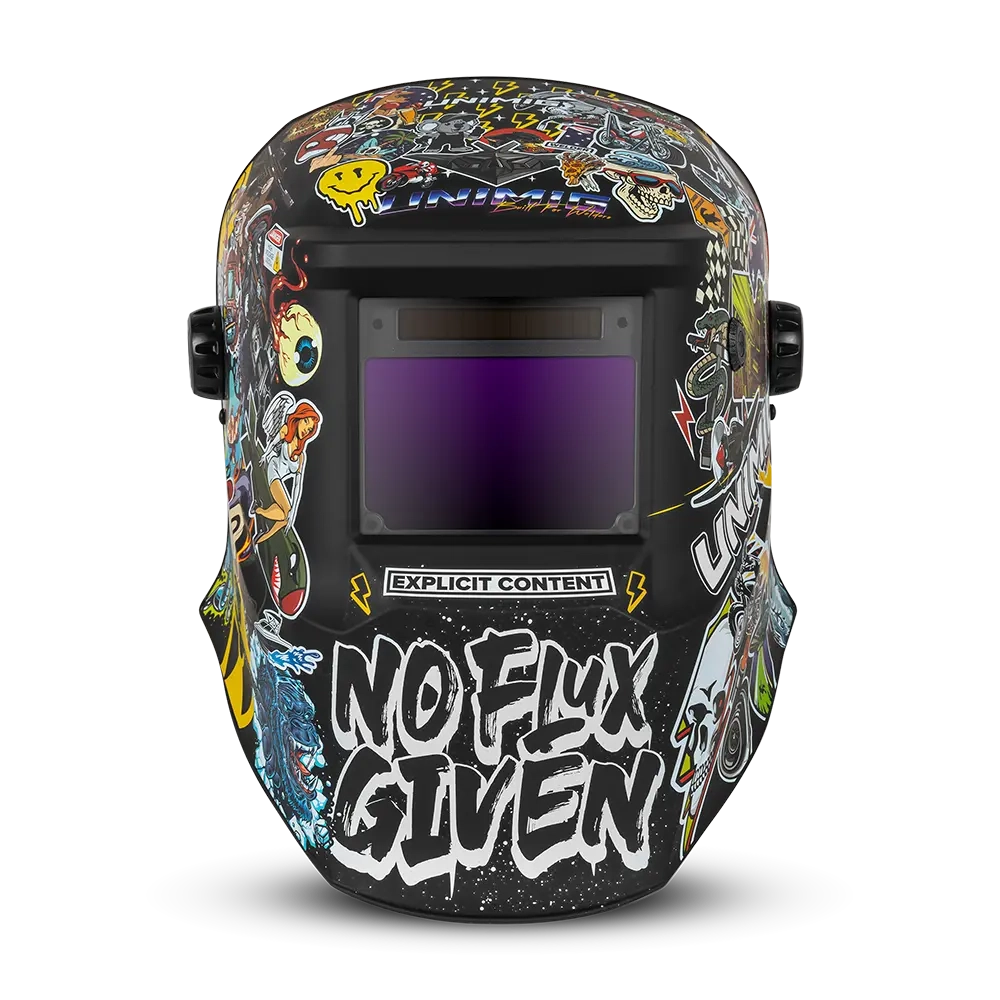

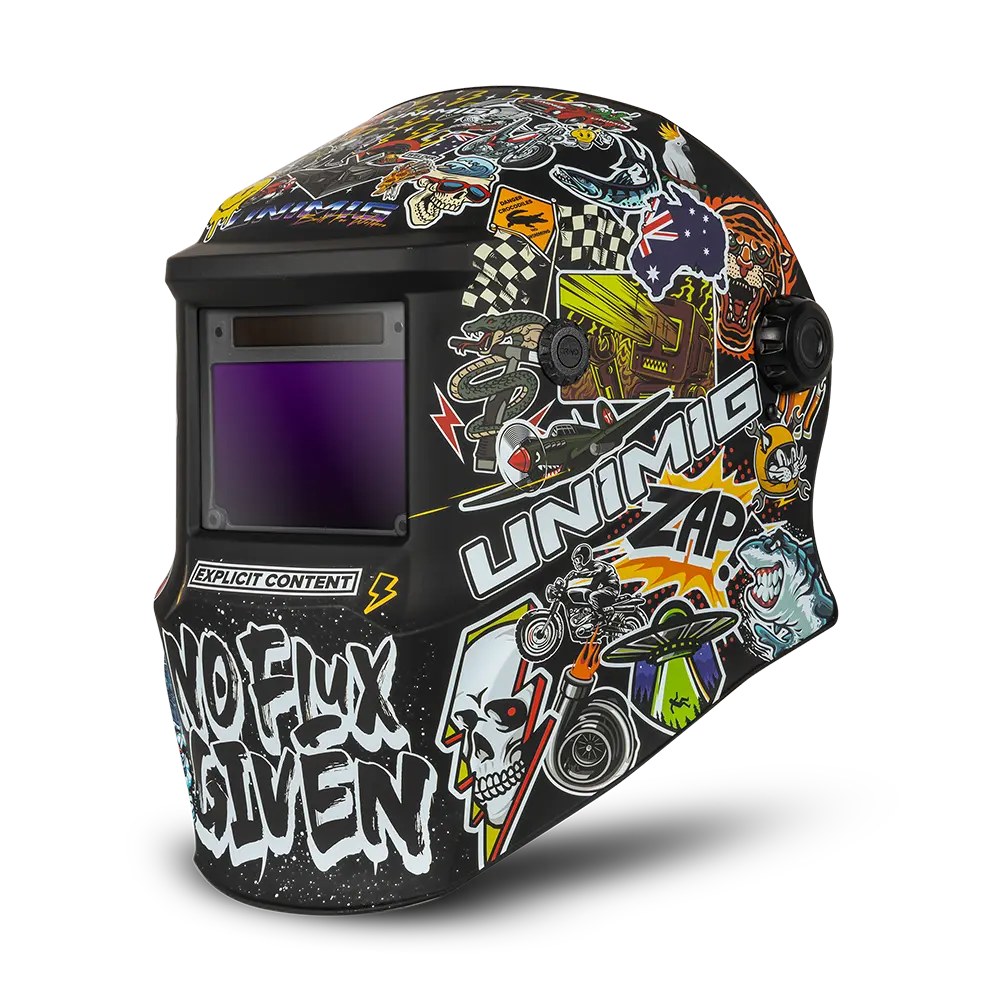

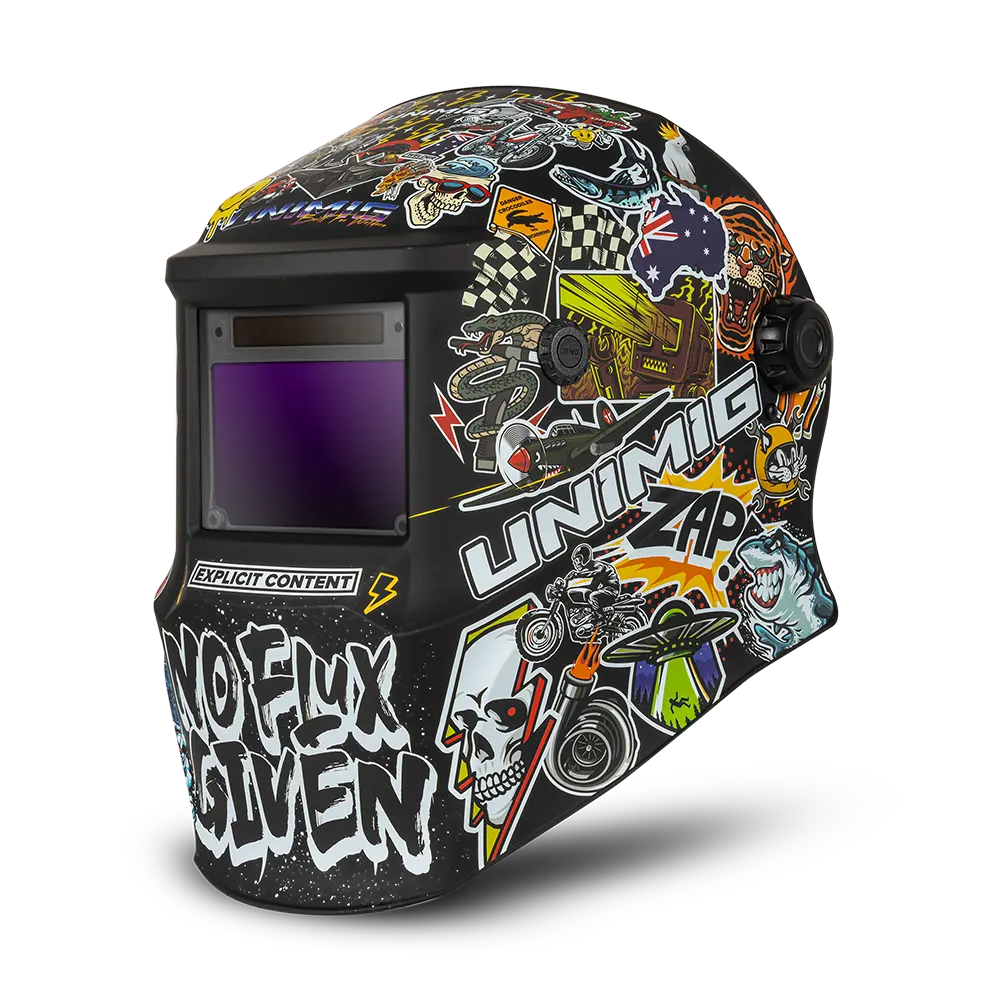

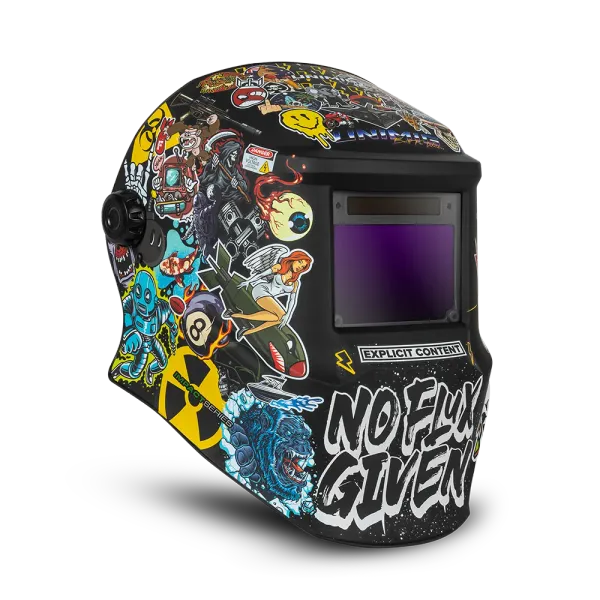

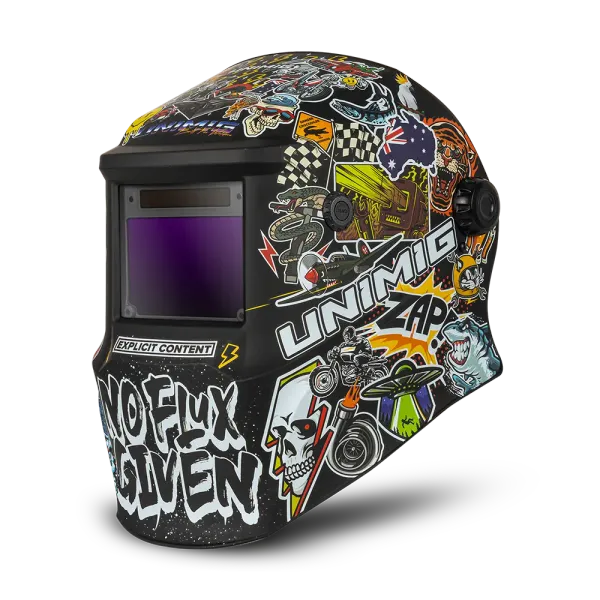

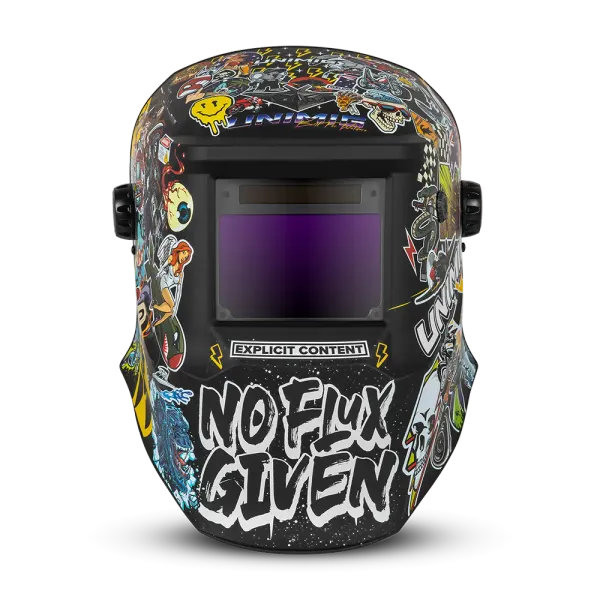

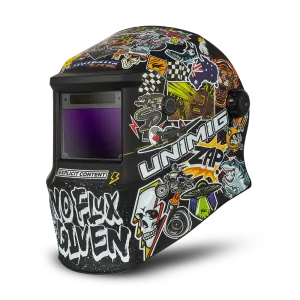

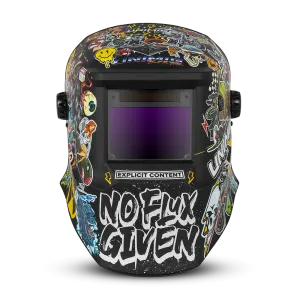

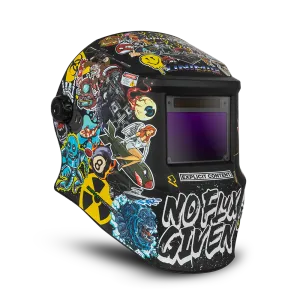

The Impact Series helmet keeps your eyes and face shielded while you weld.
View Size.
Shade Control.

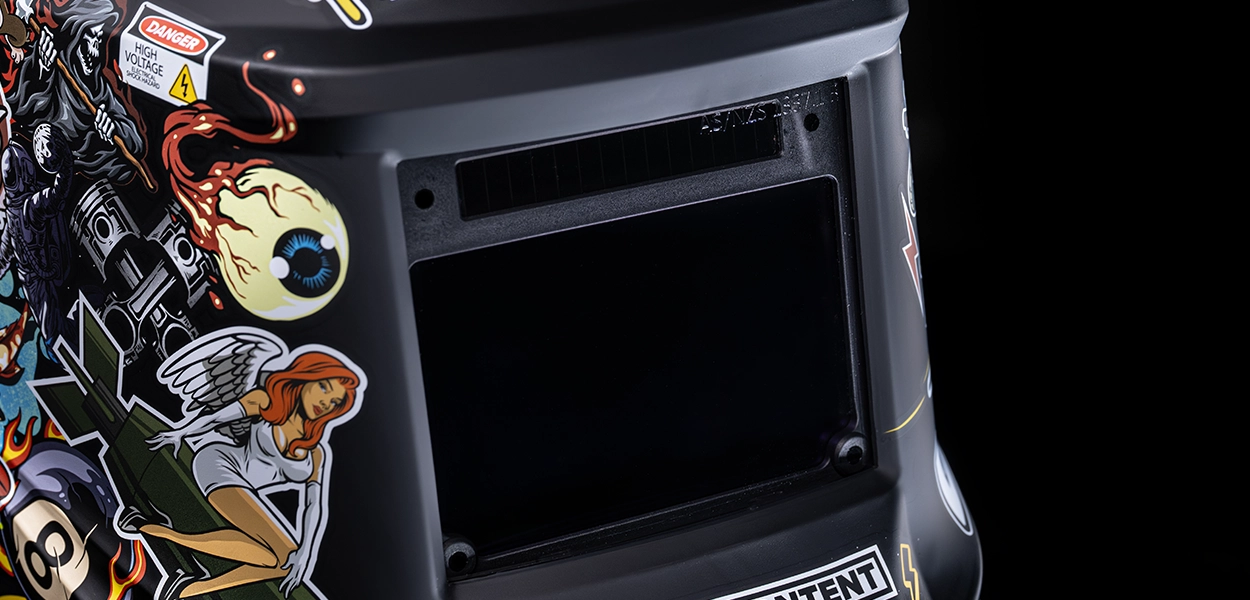

Constantly monitor the arc.
Easy access when grinding.
ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
Get clear visibility in every situation. The 98x62mm viewing area lets you see every weld with complete clarity
Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.

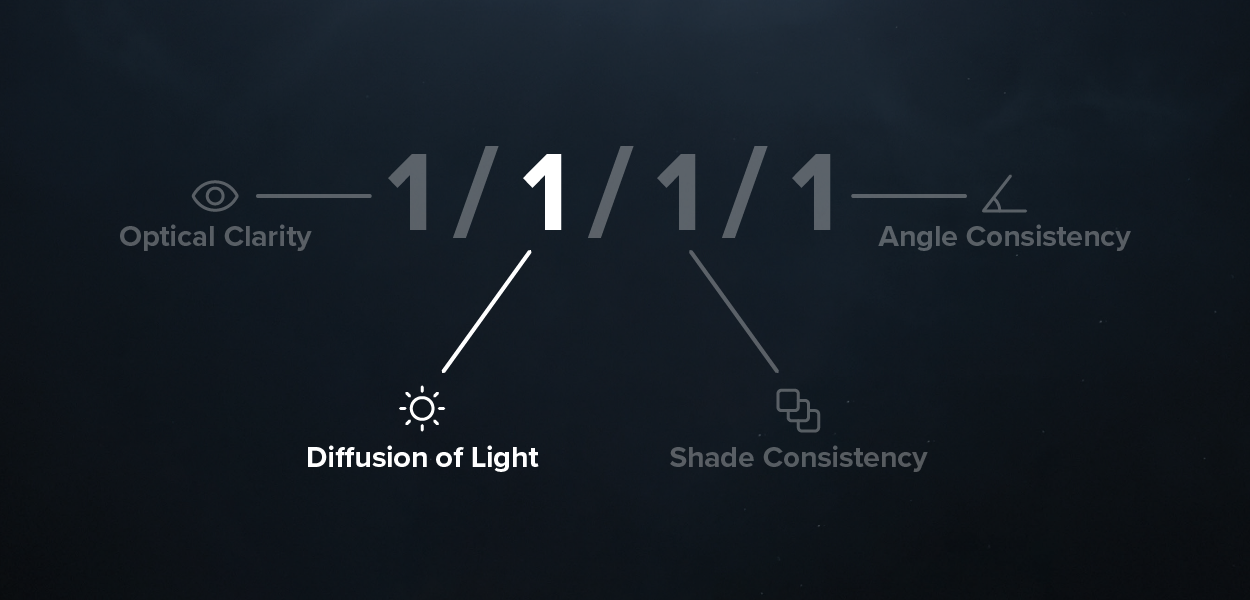

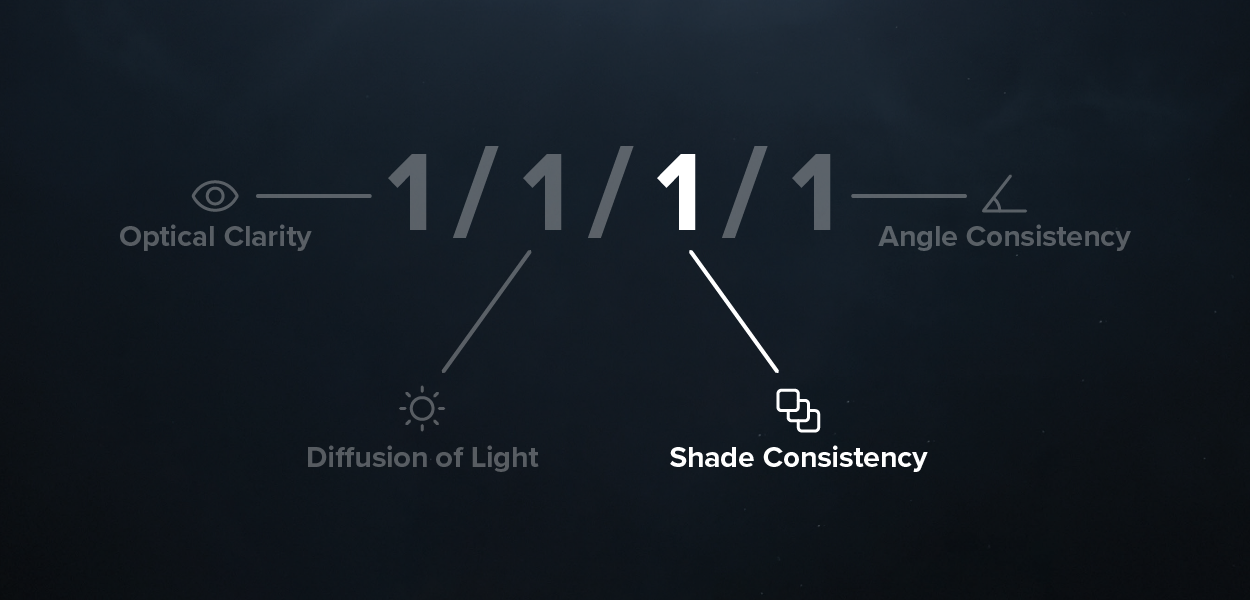

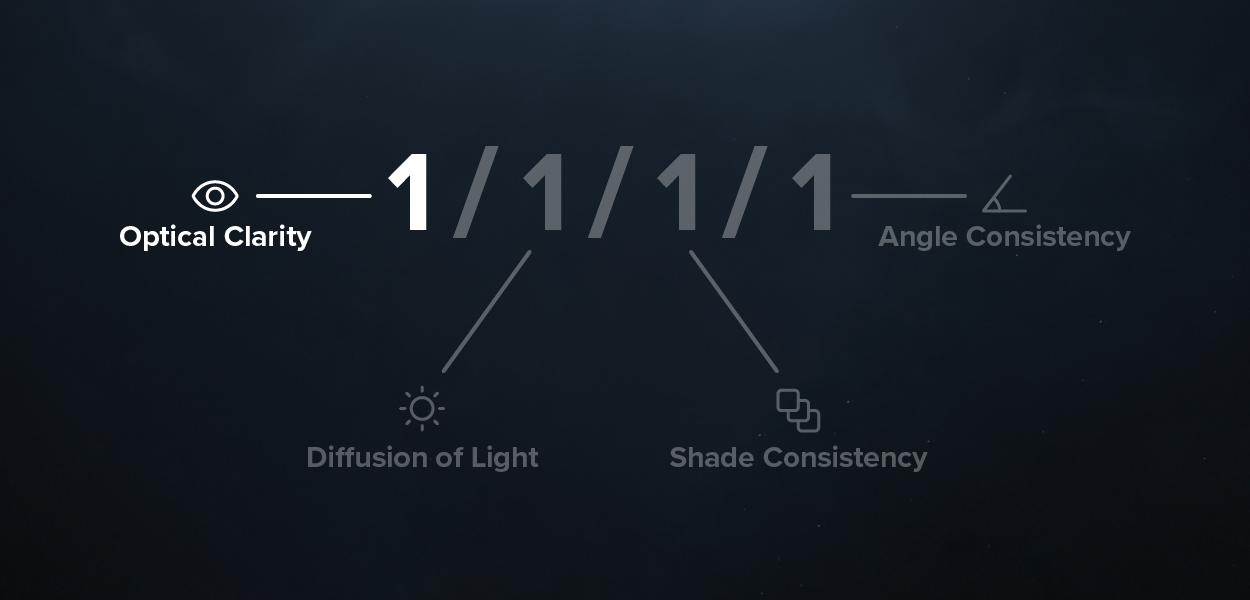

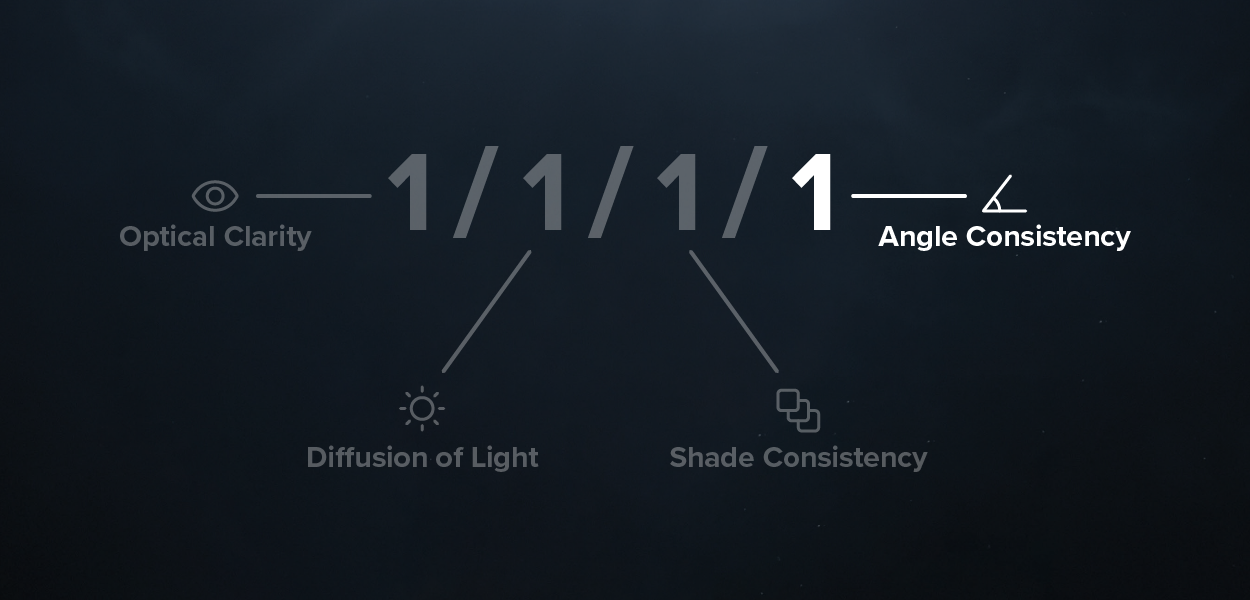

Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.
A CR2450 backup battery improves the performance and reliability of the auto-darkening filter.

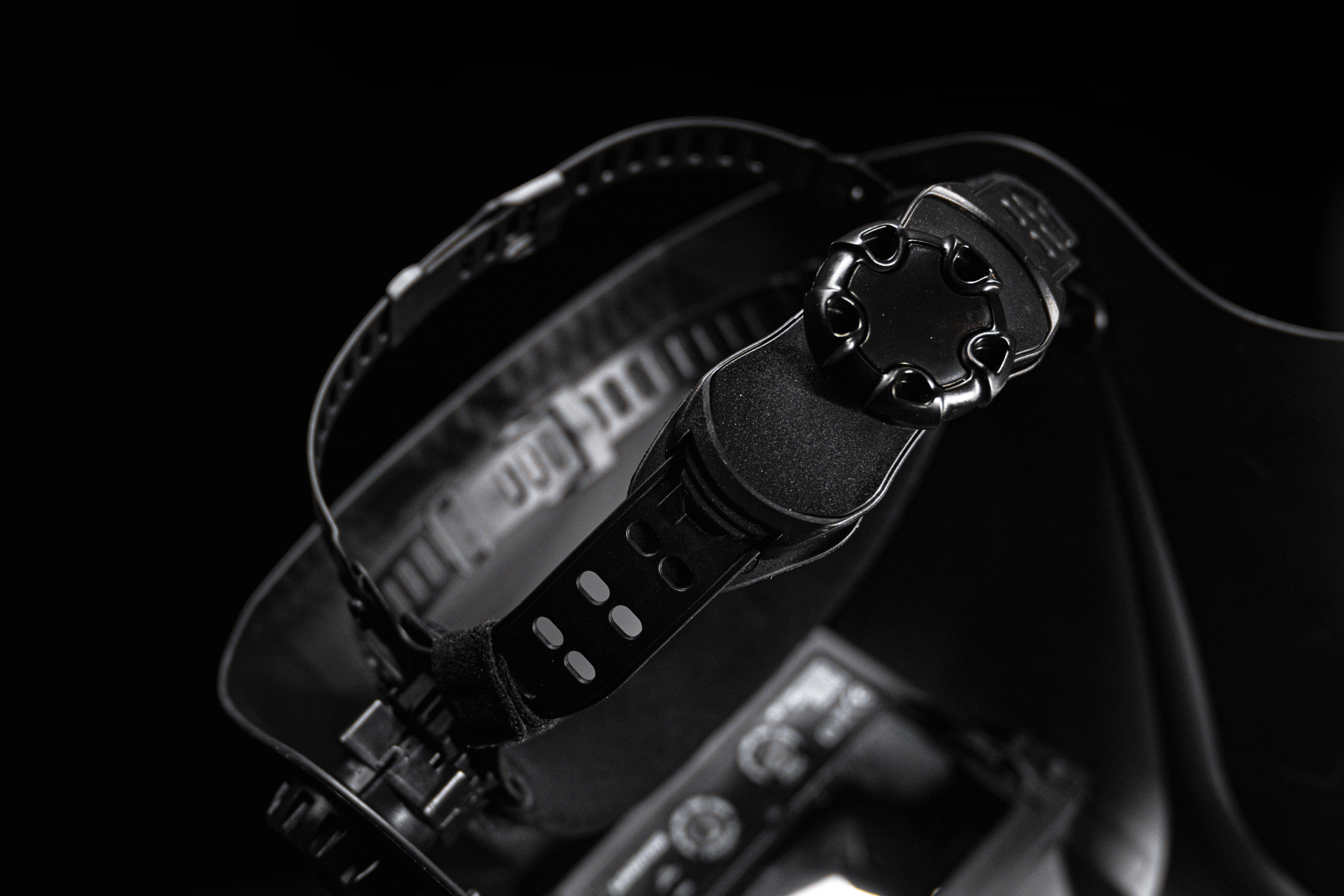

Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain.
110x90x10mm
98x62mm
4
1/1/1/1
3
5-13
DIN15
0.08ms
0.1-0.8s
Adjustable
Solar Cells & CR2450 Replaceable Battery
3 Years
-5˚C to 65˚C
-20˚C to 65˚C
Yes
Yes (External)
AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
U21041 (Impact Series Welding Helmet Lens Kit - 5 x Outer, 2 x Inner)
U21035
U21036
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 3 year warranty on Impact Series Welding Helmets. UNIMIG offers warranty across Australia with four UNIMIG service area’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind.
