Feature Video
Not All Pulse Machines Are Equal
Less spatter. Lower heat. Smoother results. Streamline your welds with the single and double pulse functions.
A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. The addition of a base current and reduction in heat means it's perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time.
100+ Smart-Set MIG Programs
Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
Modular Add-Ons

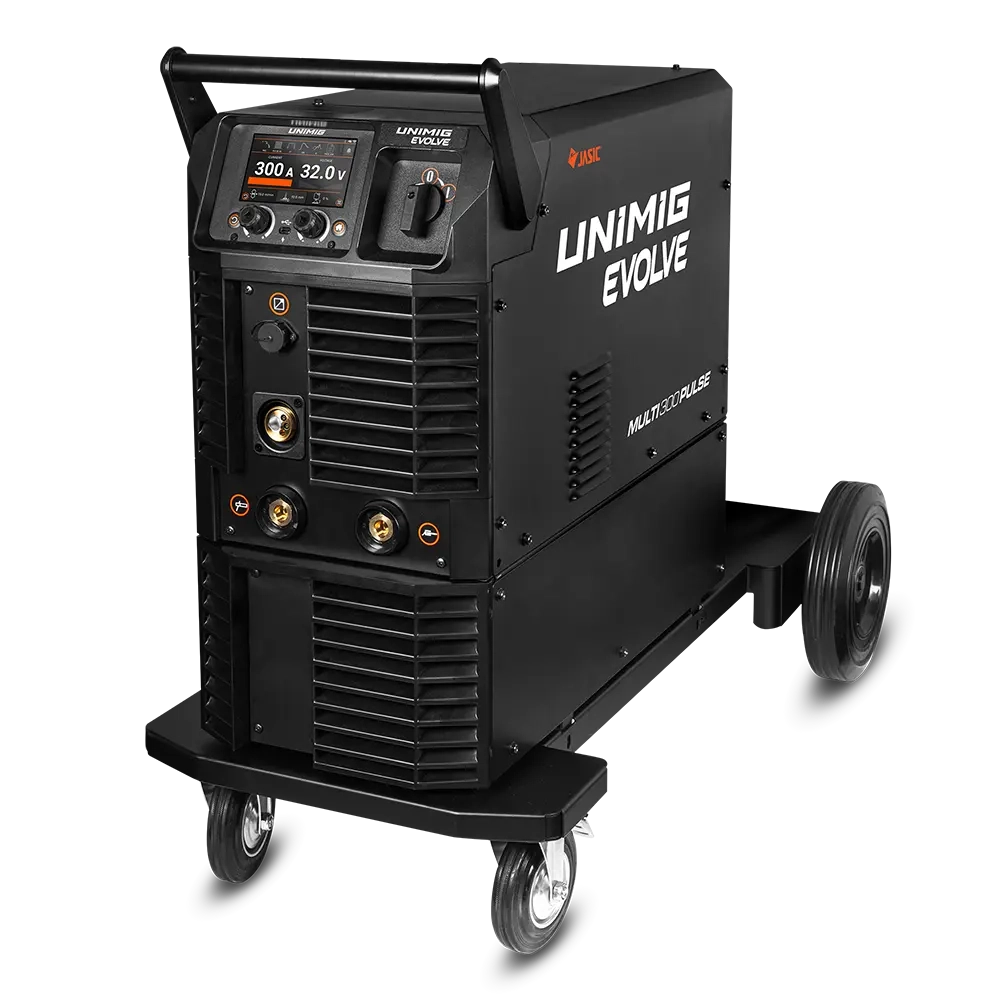

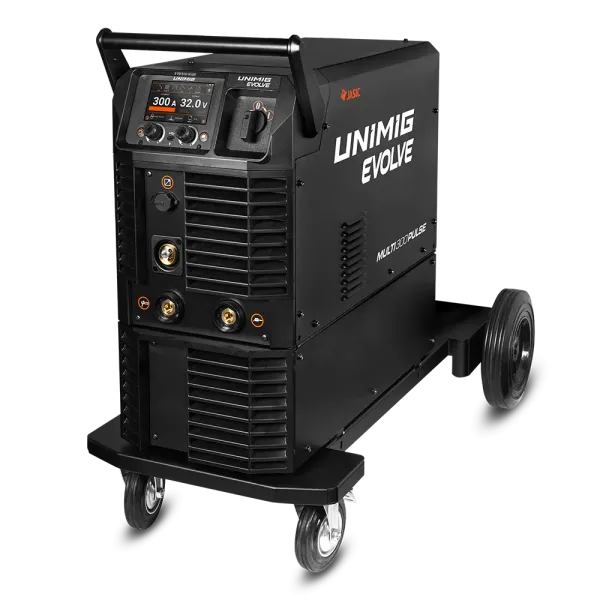

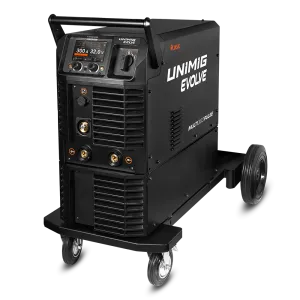

The EVOLVE MULTI 300 PULSE is built to adapt as your needs grow. Add optional modules such as a separate wire feeder, AC and DC TIG capability or a water cooler to expand what the system can do over time.
Power Sense Technology
Experience unmatched flexibility with dual voltage power sense. Connect the three-phase to single-phase plug adapter on and switch between 32A three-phase and 15A single-phase plugs as you need. When in single-phase, the machines output is limited to a maximum of 250A.
Advanced MIG Features
Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier.
Longer Torch Consumable Life
Get superior life out of every torch consumable. Designed for maximum performance, you’ll get 6x longer life with Arc Torchology consumables.
The Arc Torchology contact tips lasted up to 6x longer, withstanding the maximum amperage for 30 hours vs the Binzel 501D's 5 hours.
Less Maintenance & Downtime
Spend less time cleaning your consumables and have them last longer with 90% less spatter adhesion.
The Arc Torchology contact tips had 90% less spatter adhesion on the tip's face, with only 9% spatter vs the Binzel 501D's 100%.
Push-Pull Ready
Run soft wires with confidence. The system supports a push pull torch with a built in pull motor that assists the main drive, keeping aluminium and other soft wires feeding smoothly over longer distances. You get stable wire delivery and more freedom to move while welding.
Advanced IGBT Inverter Technology
Our IGBT inverter platform delivers higher efficiency, stronger arc stability and more consistent power delivery. It runs cooler, responds faster to changes in arc demand and provides the reliability needed for modern welding applications.
4 Geared Wire Feed System
Built for stability and control. The four geared mechanism increases drive force and keeps wire delivery steady, even when you are using extended torch lengths.
IP21S Protection Rating
Rated IP21S for consistent performance in standard workshop conditions. A dependable level of protection suited to everyday welding environments.
Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.
The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
