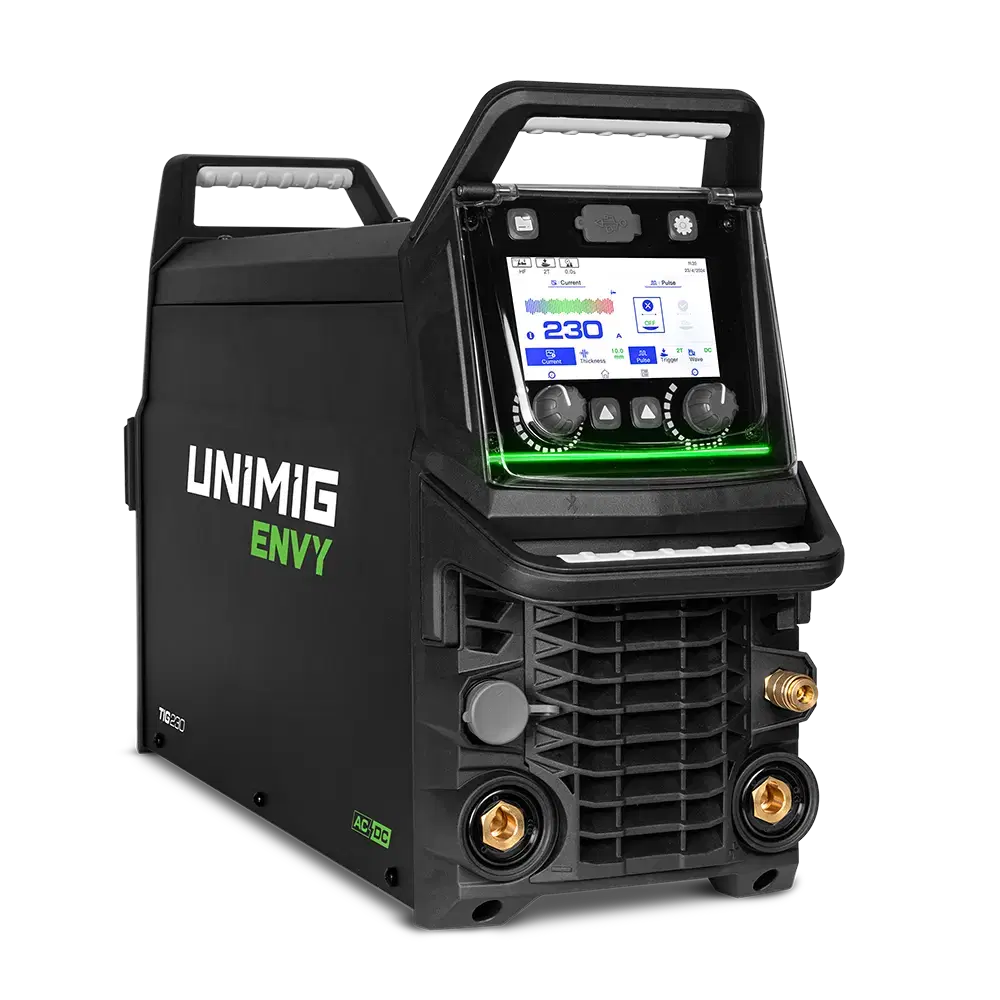

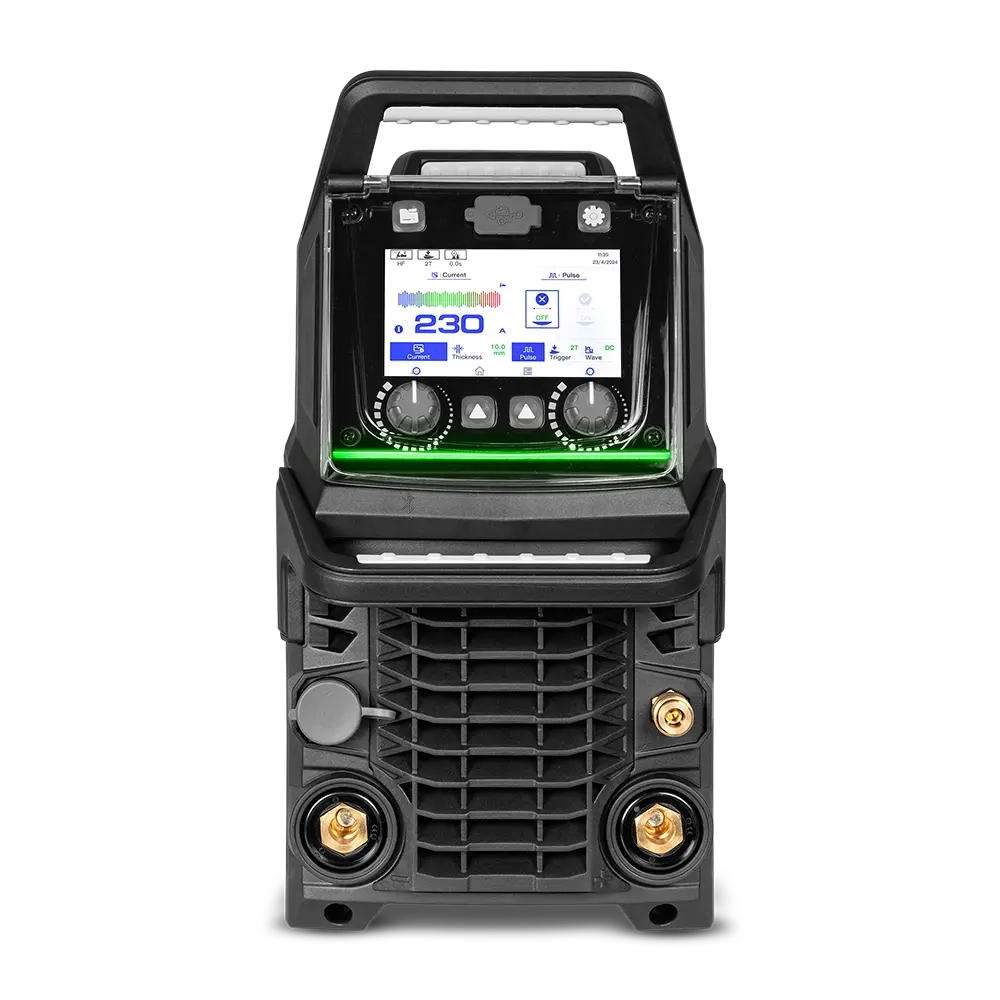

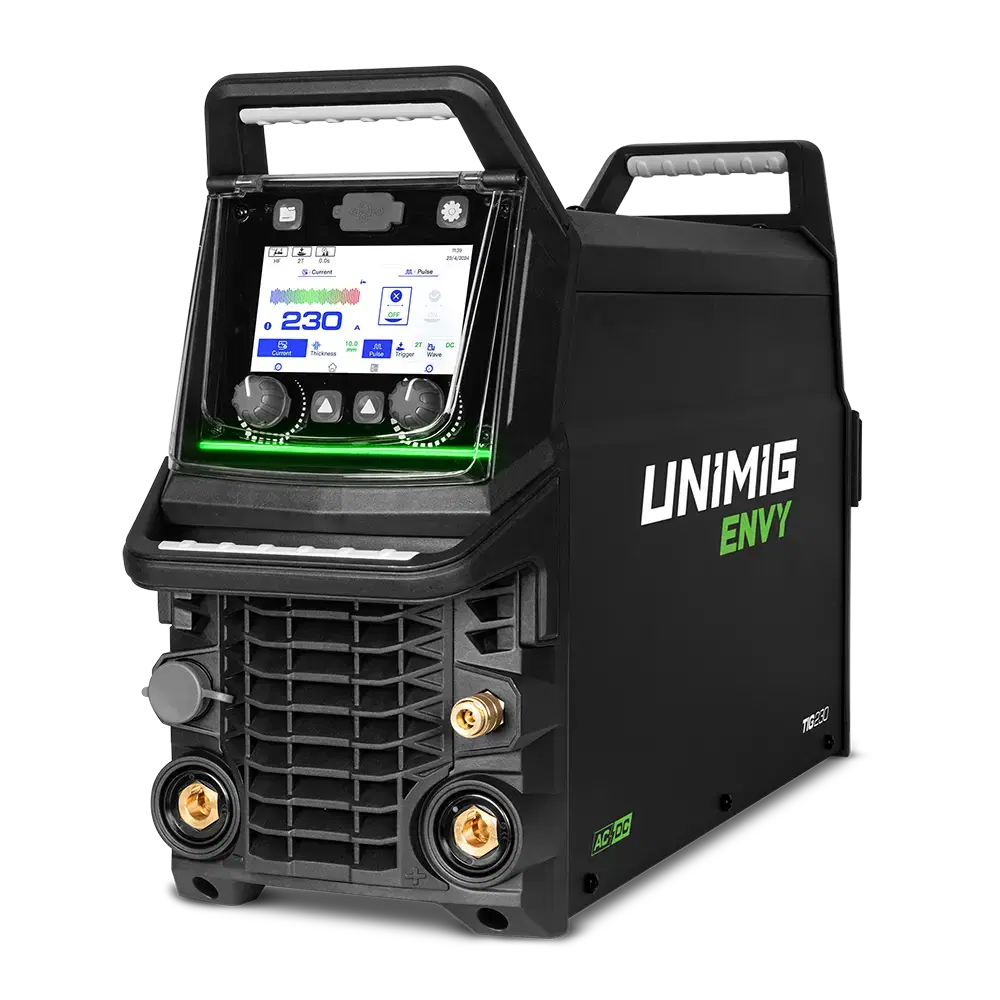

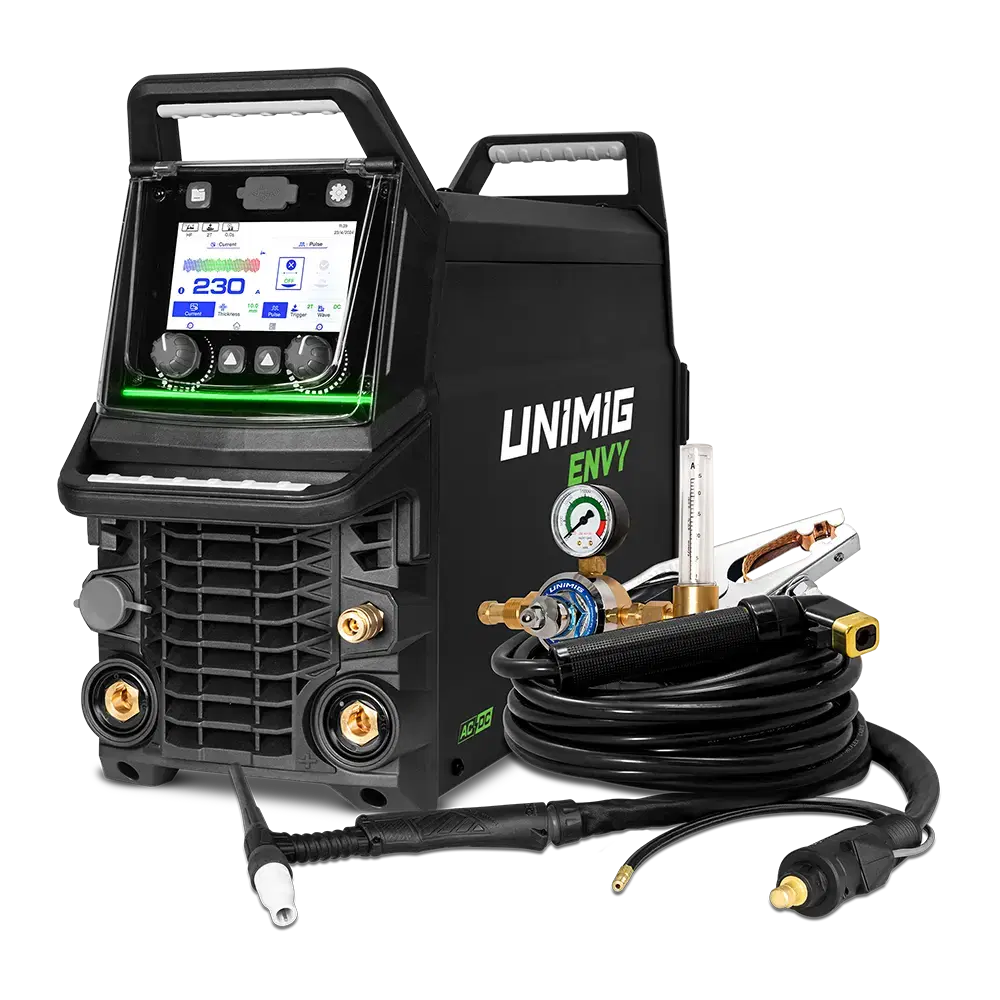

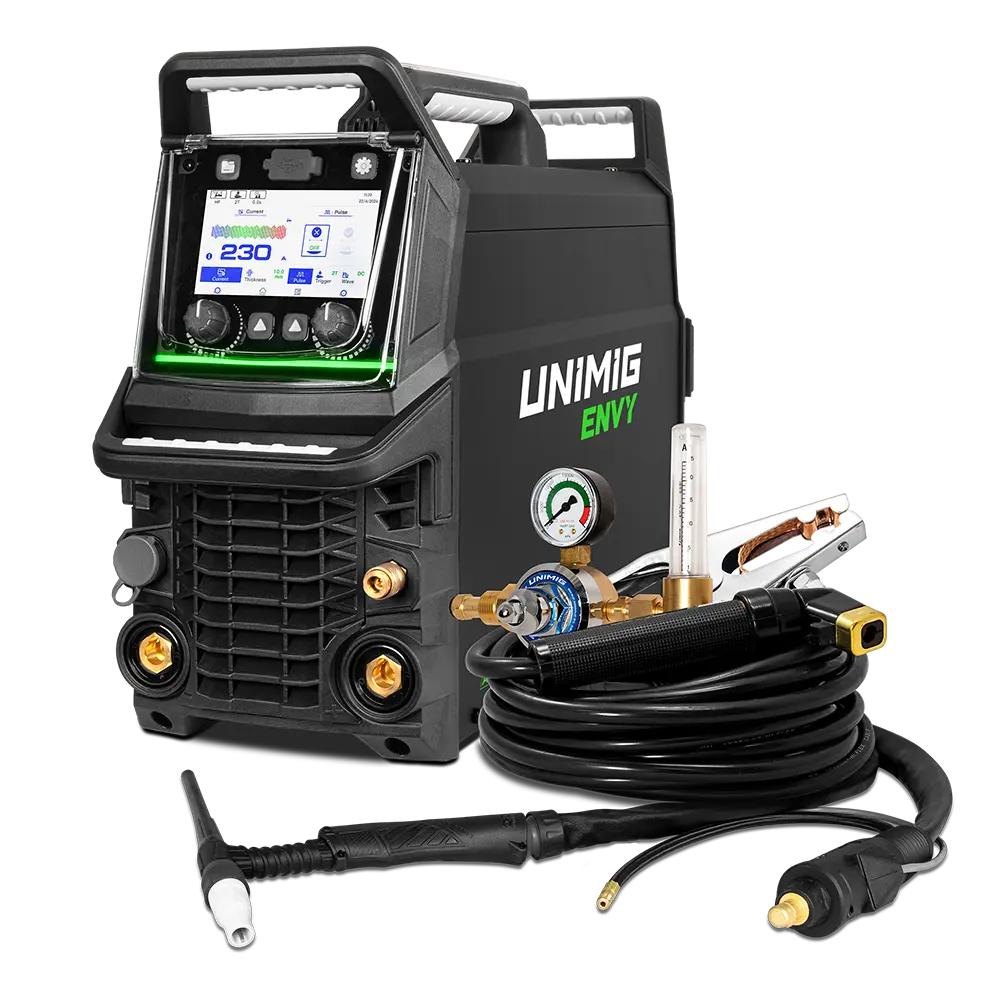

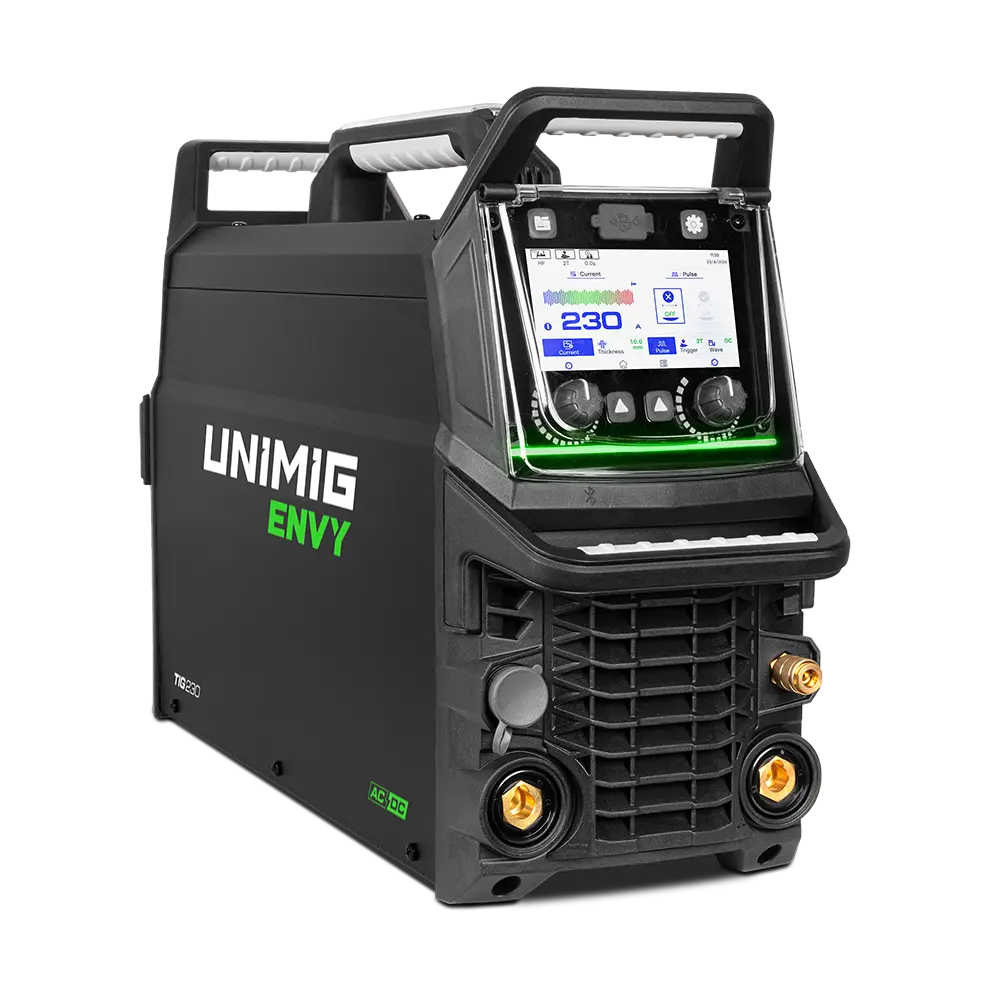

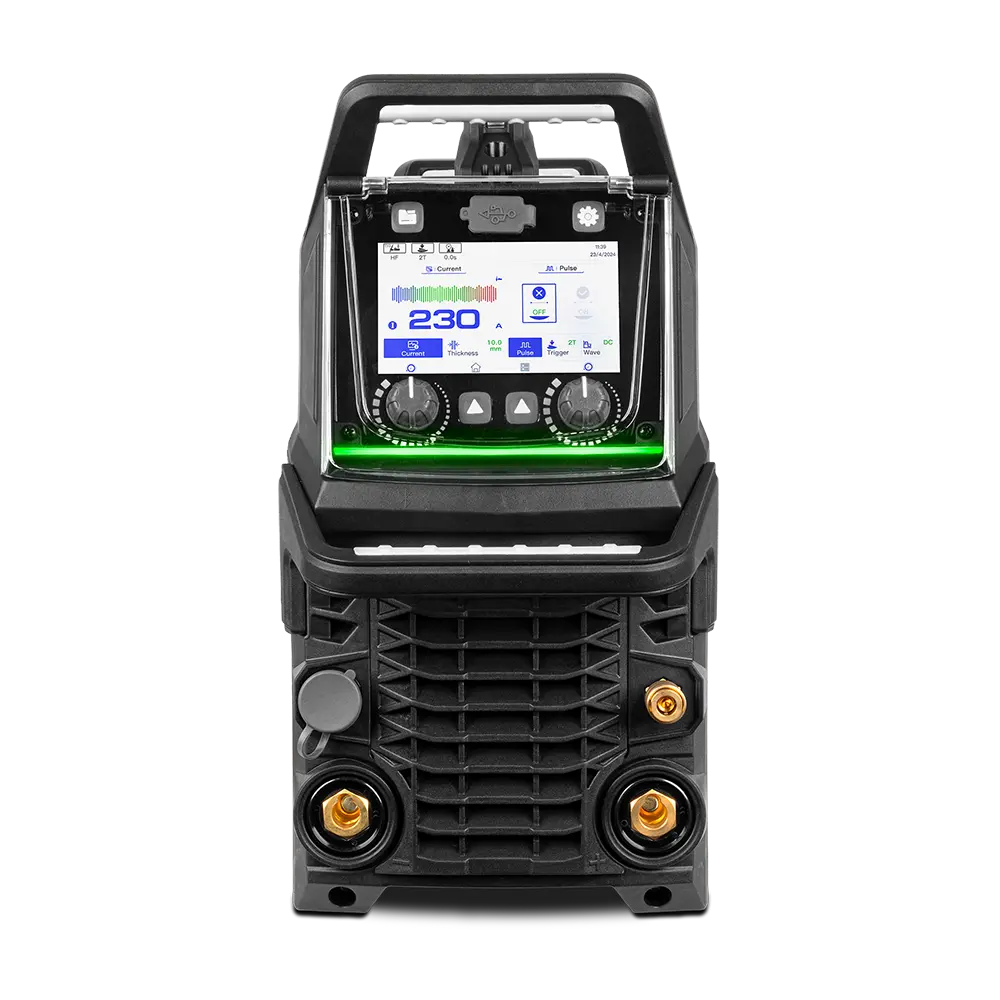

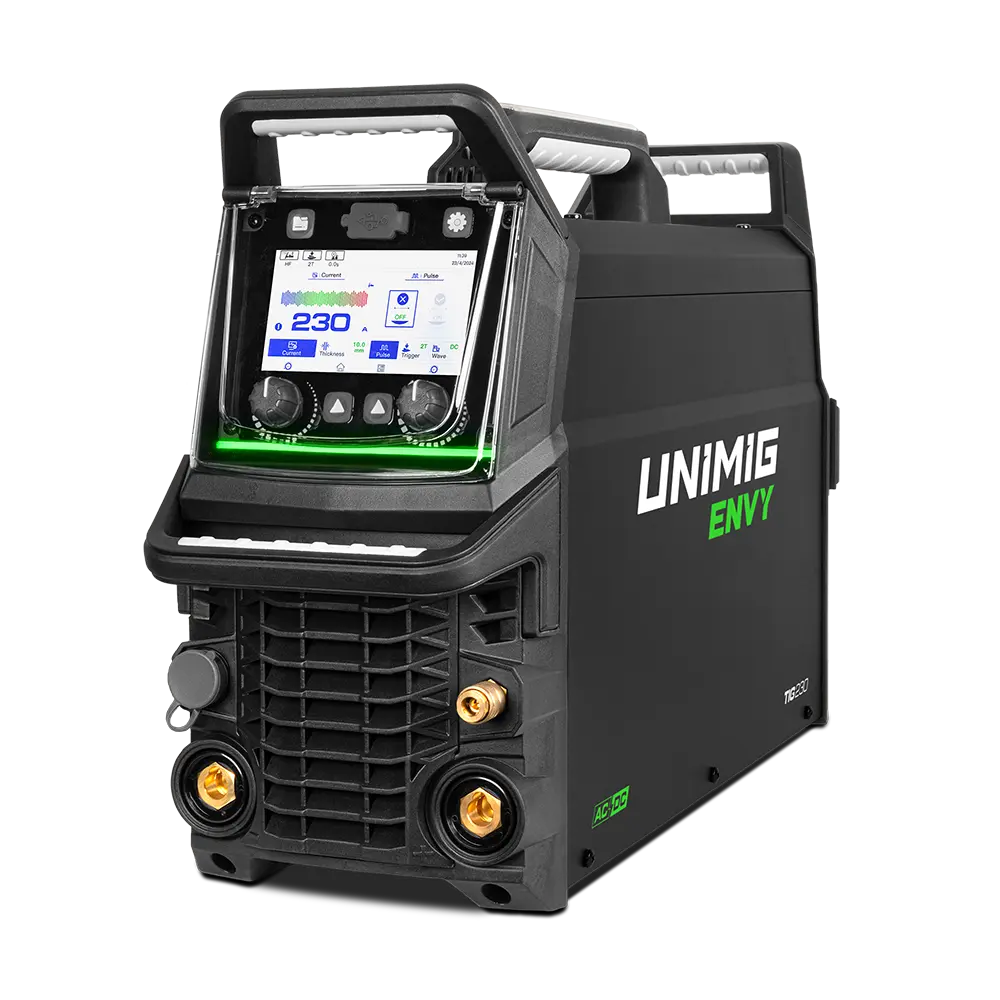

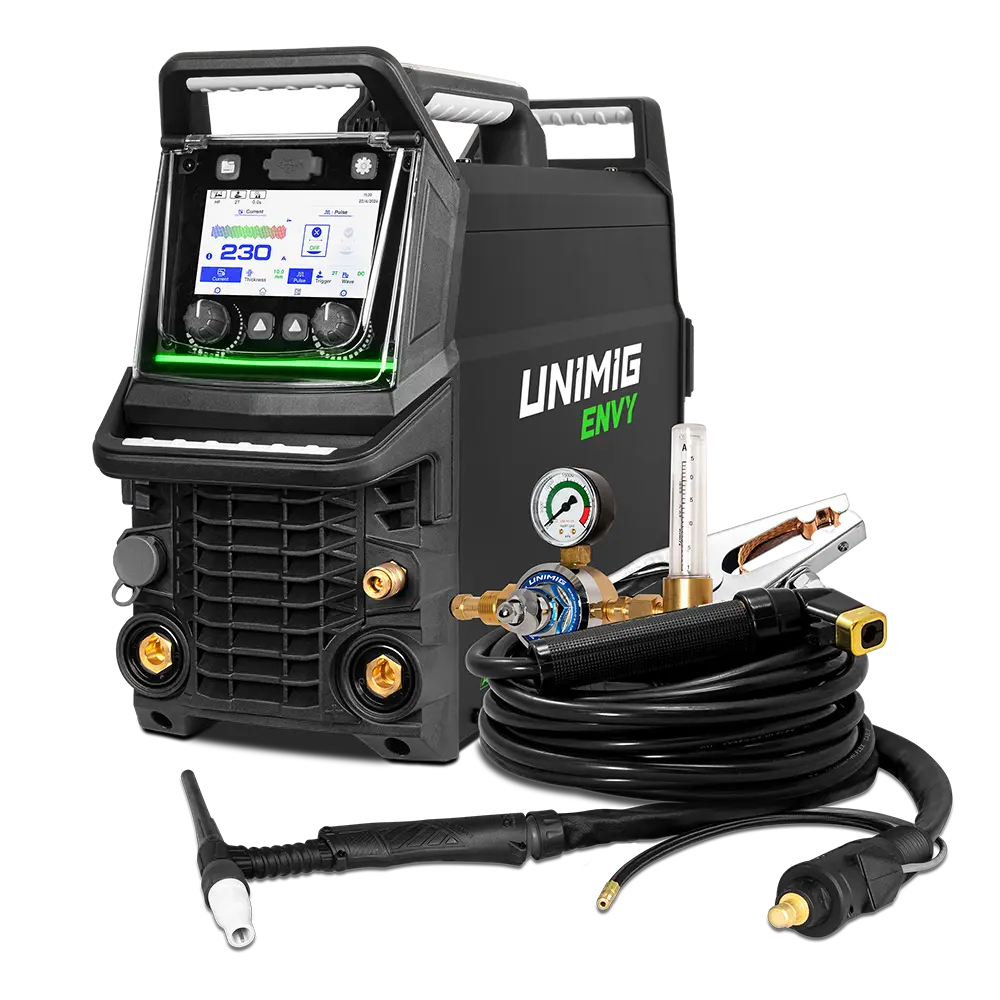

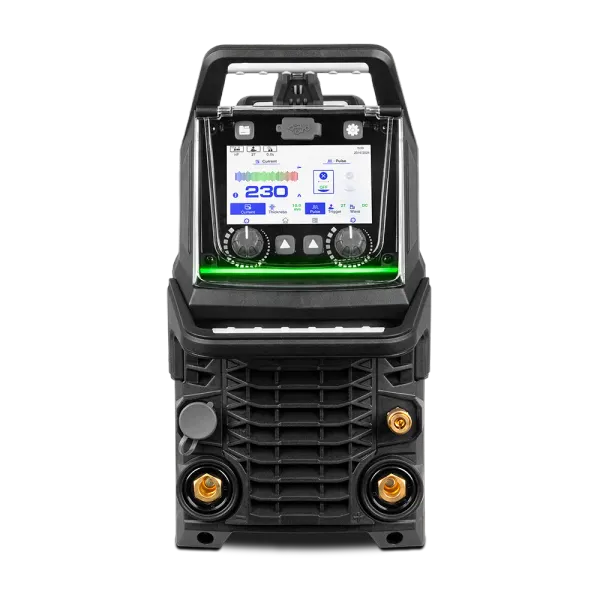

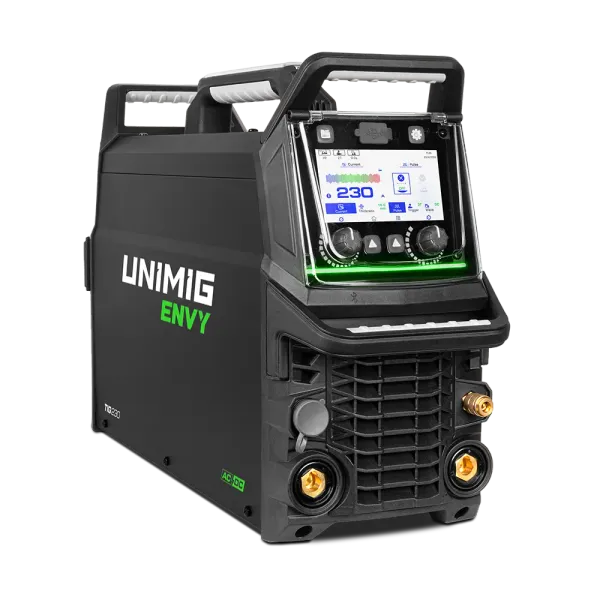

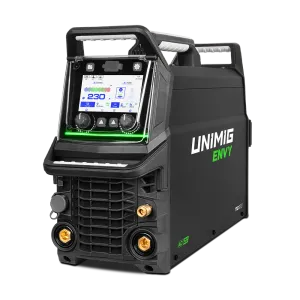

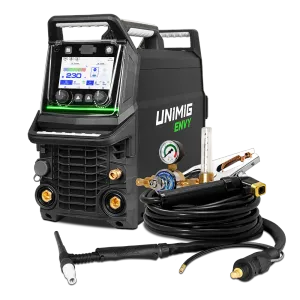

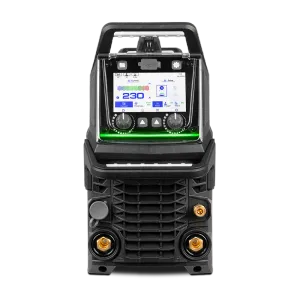

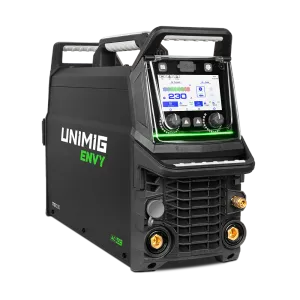

    ENVY TIG 230 AC/DC Welder


    Feature Video

    Silicon Carbide Technology

    The first of its kind, the new silicon carbide (SiC) MOSFET is the next-generation of semiconductor technology. Our new SiC MOSFET works to make the machine more reliable, with a superior arc performance and better weld quality compared to previous IGBT technology.

    play

    TIG Smart-Set

    The easiest way to set up for a TIG weld, simply set your filler material, joint type, tungsten diameter, and material thickness and you’re good to go!

    play
    play
    play
    Mild Steel
    Stainless Steel
    Aluminium

    Advanced TIG Programs

    play
    play
    play
    play
    Speed Start
    TackPlus
    Steady Arc
    Amplitude Control

    Speed up the formation of the weld puddle by applying a synergic pulse program to the beginning of the weld. The initial pulse works to melt the joint edges faster, for quicker puddle formation compared to a standard arc start.

    Mixed AC/DC

    Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld thicker materials.

    play

    Power Factor Correction (PFC)

    Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.

    See the difference


    Low Amp TIG with Stable Arc

    Maintain a stable arc even when TIG welding as low as 2A. The new and improved SiC MOSFET technology means you can hold a steady arc no matter how low your amperage.

    play

    AC & DC Waveforms

    Customise your waveform in both DC and AC weld modes. Choose from your preferred welding waveform or use a combination of two to adjust the arc characteristics to suit your welding needs.

    play

    Higher Pulse Frequency in AC & DC

    With a pulse frequency as high as 999 pulses per second in both AC and DC TIG, you can get as many pulses as you need for any scenario.

    play

    Cap Shaping

    Get the perfect tungsten shape for your aluminium welds every time with just the click of the trigger. Turn the cap shaping feature on, press the torch trigger, and the machine will prep the optimal tungsten shape for your aluminium welds.

    play

    Foot Control Ready

    This machine supports the connection of both a wired or wireless foot control for extra versatility and convenience while welding. You can adjust your amperage hands-free to avoid disrupting your torch movement, and the wireless option reduces cables and adds greater manoeuvrability as well.

    play

    Smart Fan

    Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

    play

    Advanced MMA Features

    play
    play
    play
    play
    Pulse MMA
    Hot Start
    Arc Force
    Anti-Stick

    Pulse MMA welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.

    Additional Features

    Job Memory

    The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 100 Jobs can be memorised and stored for recall.

    Generator Compatible

    Going off the grid? The ENVY TIG 230 AC/DC can be connected to a generator, we recommend one with at least 8kVA.

    Specifications

    Primary Input Voltage

    240V Single-Phase

    Supply Plug

    15A

    Ieff (A)

    9.7

    Imax (A)

    25.0

    No Load Voltage (V)

    100.0

    Protection Class

    IP21S

    Insulation Class

    H

    Minimum Generator (kVA)

    10

    Dinse Connector

    35/50

    Standard

    AS 60974.1

    Warranty

    5 Years

    Weight (kg)

    20.60

    Dimensions (LxWxH)

    680 x 210 x 395mm

    Suitable Materials

    TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys

    MMA: Mild Steel, Stainless Steel, Cast Iron

    Downloads

    application/pdf icon

    ENVY TIG 230 AC/DC Manual

    31.40 MB

    application/pdf icon

    ENVY TIG 230 AC/DC Info Sheet

    0.46 MB
