Consumables For Every Occasion

Get consumables to match your welding requirements, no matter the application or environment.

Tig Standard Sr & Valve   9Tig Gas Lens Sr & Valve   9Tig Apex Sr & Valve   9
Standard

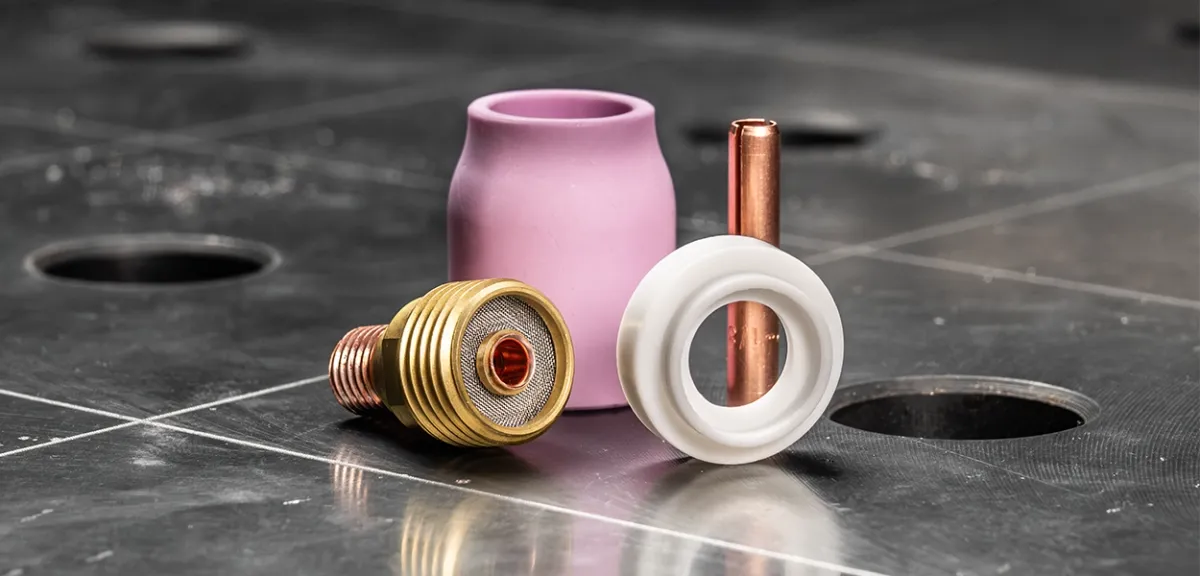

Gas Lens

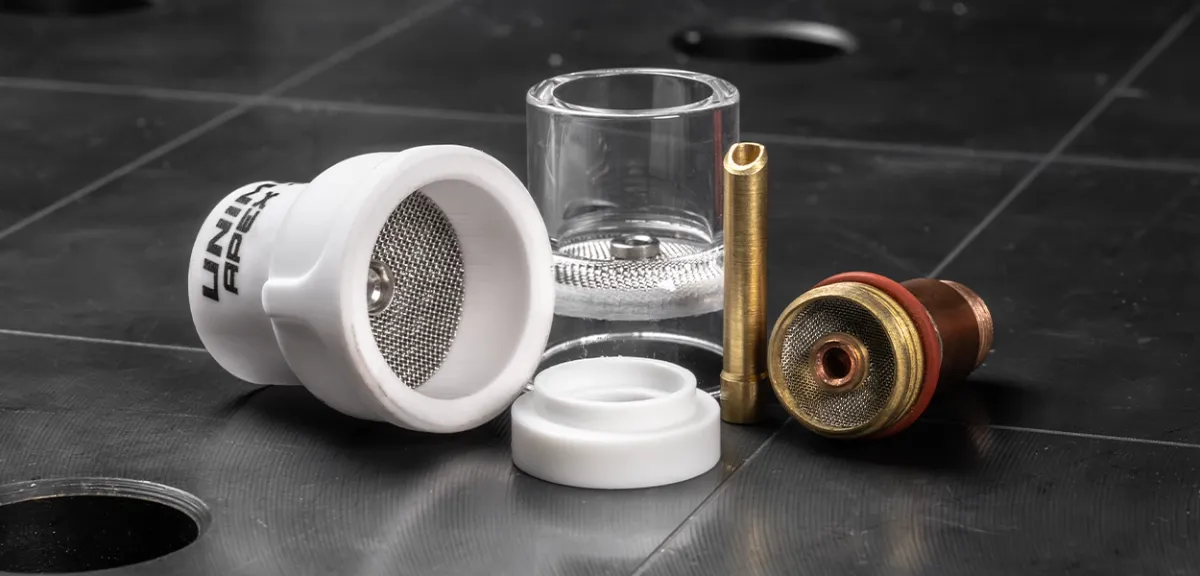

APEX

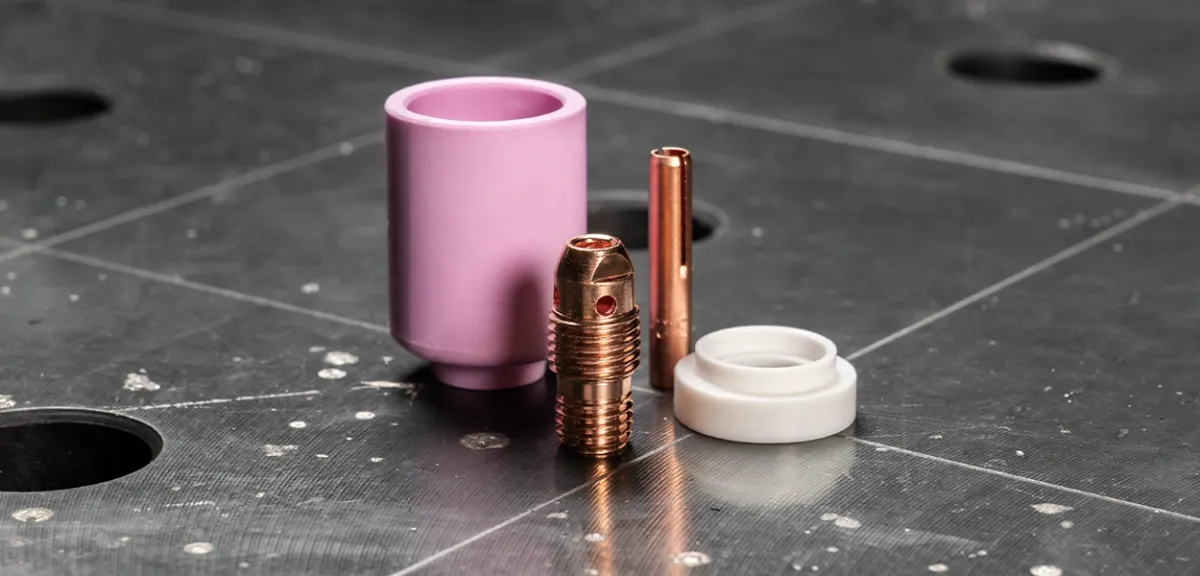

A versatile all-rounder, the standard TIG consumables are a great choice for most welds.

Additional Features

125A Output

Perform effortlessly on every weld. With a rated output of 125A, you’ll be able to weld with tungsten electrodes up to 2.4mm thick.

Ergonomic Handle

The ergonomic handle, with soft grips and knuckle joints, provides comfort even during extended periods of usage.

Flex-Head Compatible

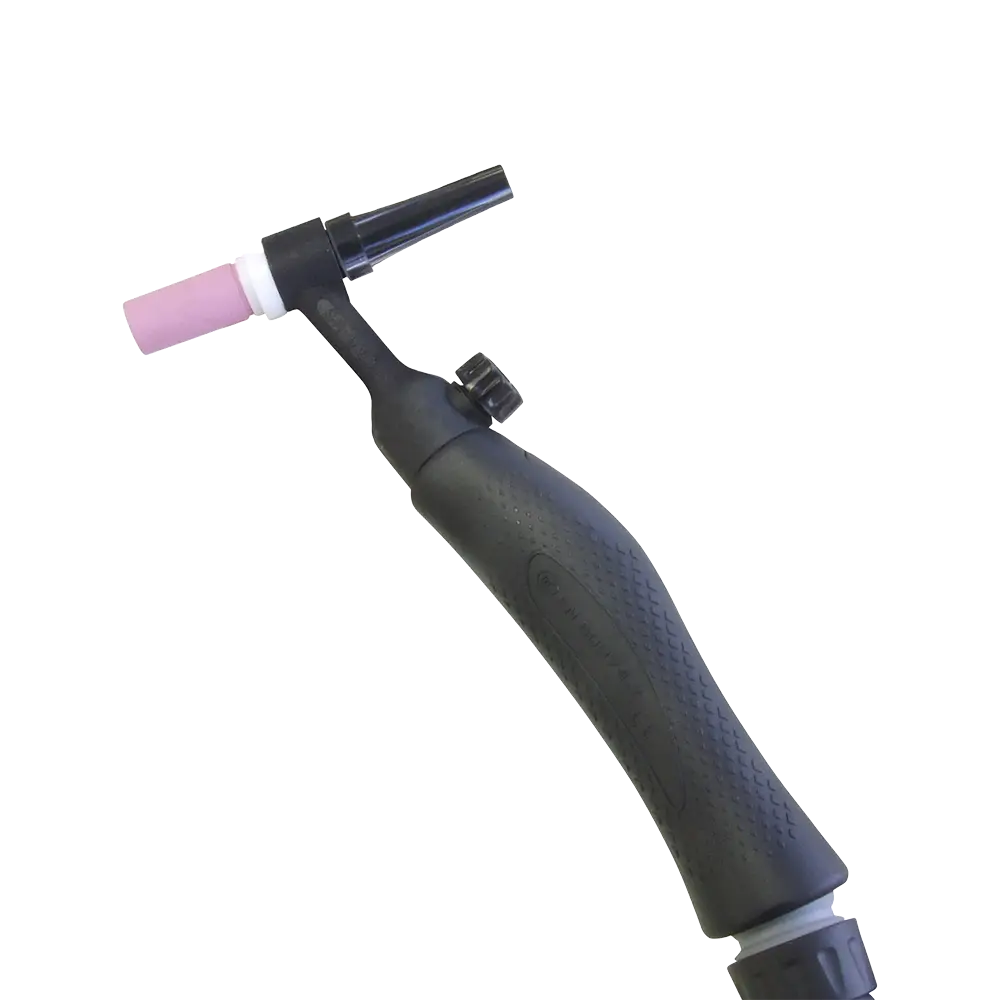

Bend your torch head to any angle you need. The Series 9 Valve torch comes with the option to swap to a flex-head, so you can access tight and cramped spaces when you need to.

Advanced Cable System

A durable cable system keeps your torch connections protected and running at max capacity. Shielded switch leads, rubber cable materials, and a flexible leather section along the first metre of the torch all work to safeguard your torch leads.

Specifications

Cooling Method

Air-Cooled

Maximum Output

125A

Duty Cycle @ 40°C - DC

35% @ 125A

Duty Cycle @ 40°C - AC

35% @ 90A

Lengths (m)

4, 8

Tungsten Range

1.0-2.4mm

Dinse Size

10/25

35/50

Standard

EN 60974-7

Downloads

application/pdf icon

Standard TIG Torch Manual

3.19 MB

application/pdf icon

9V TIG Torch Info Sheet

0.49 MB
