Customisable Controls
Weld the way you want to with a range of interchangeable torch potentiometers for every style.

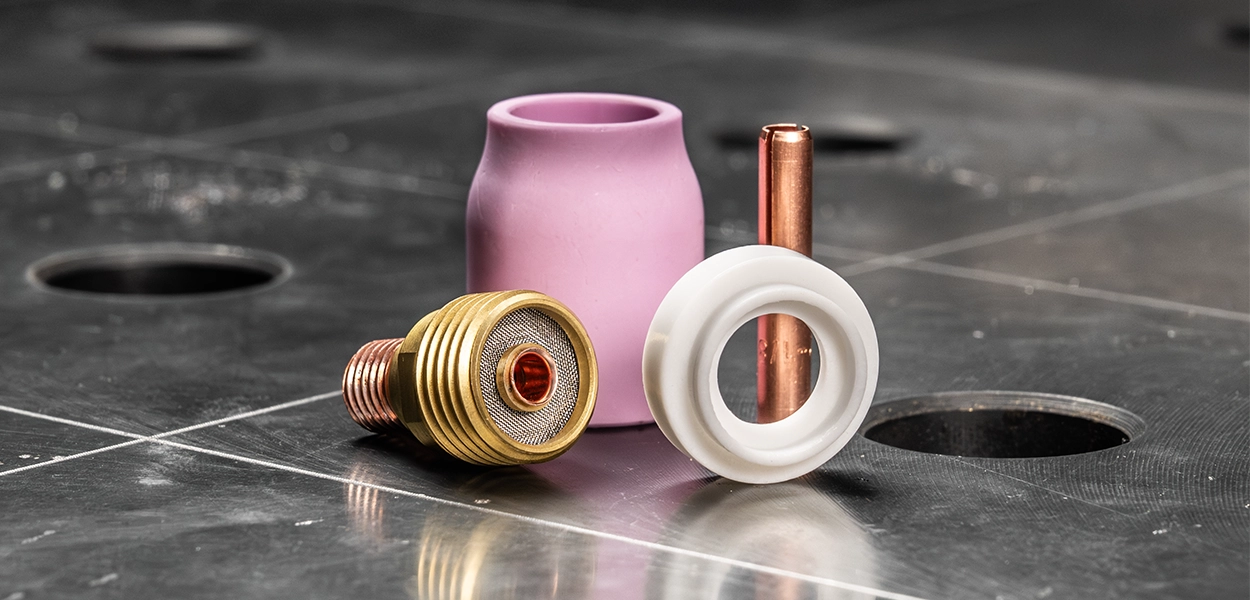

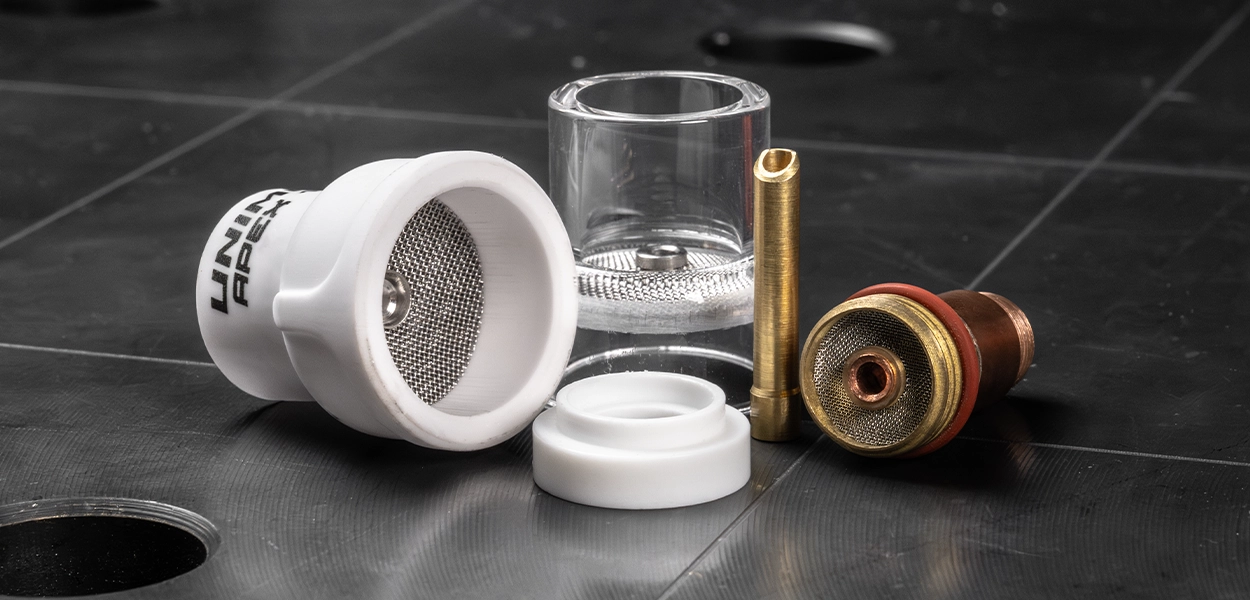

Consumables For Every Occasion
Get consumables to match your welding requirements, no matter the application or environment.

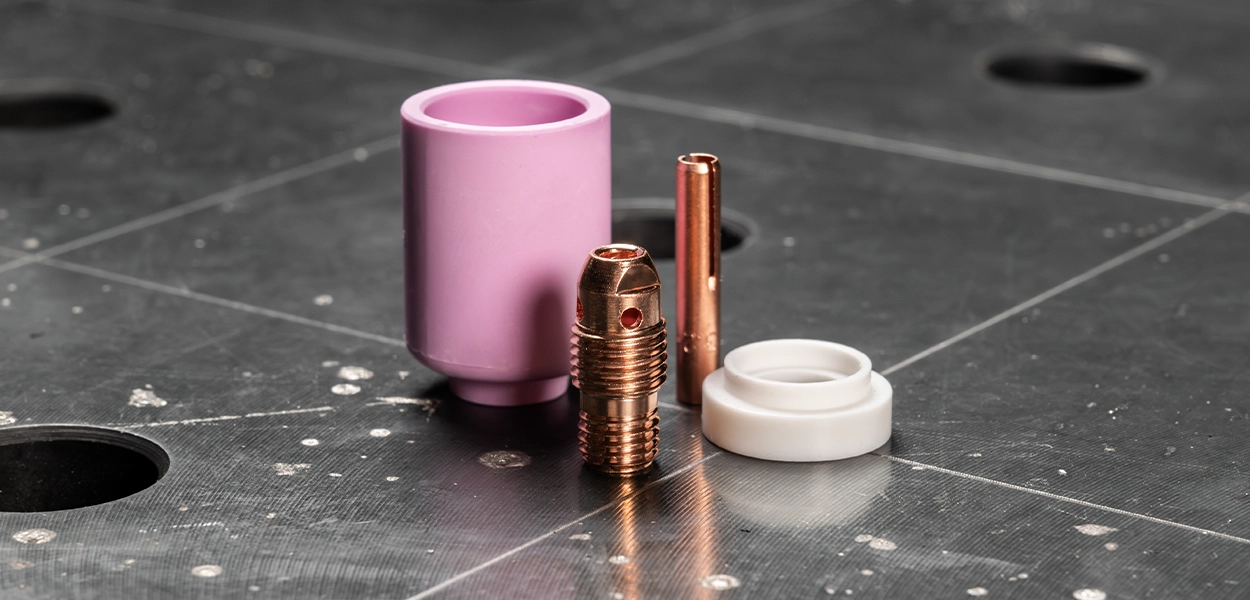

A versatile all-rounder, the standard TIG consumables are a great choice for most welds.
Additional Features
125A Output
Perform effortlessly on every weld. With a rated output of 125A, you’ll be able to weld with tungsten electrodes up to 2.4mm thick.
Ergonomic Handle
The ergonomic handle, with soft grips and knuckle joints, provides comfort even during extended periods of usage.
Flex-Head Compatible
Bend your torch head to any angle you need. The 9 Series torch comes with the option to swap to a flex-head, so you can access tight and cramped spaces when you need to.
Advanced Cable System
A durable cable system keeps your torch connections protected and running at max capacity. Shielded switch leads, rubber cable materials, and a flexible leather section along the first metre of the torch all work to safeguard your torch leads.
Specifications
Cooling Method
Air-Cooled
Maximum Output
125A
Duty Cycle @ 40°C - DC
35% @ 125A
Duty Cycle @ 40°C - AC
35% @ 90A
Lengths (m)
4, 8
Tungsten Range
1.0-2.4mm
Dinse Size
35/50
Standard
EN 60974-7
Downloads
Standard TIG Torch Manual
3.19 MB
SR9 TIG Torch Info Sheet
0.52 MB
