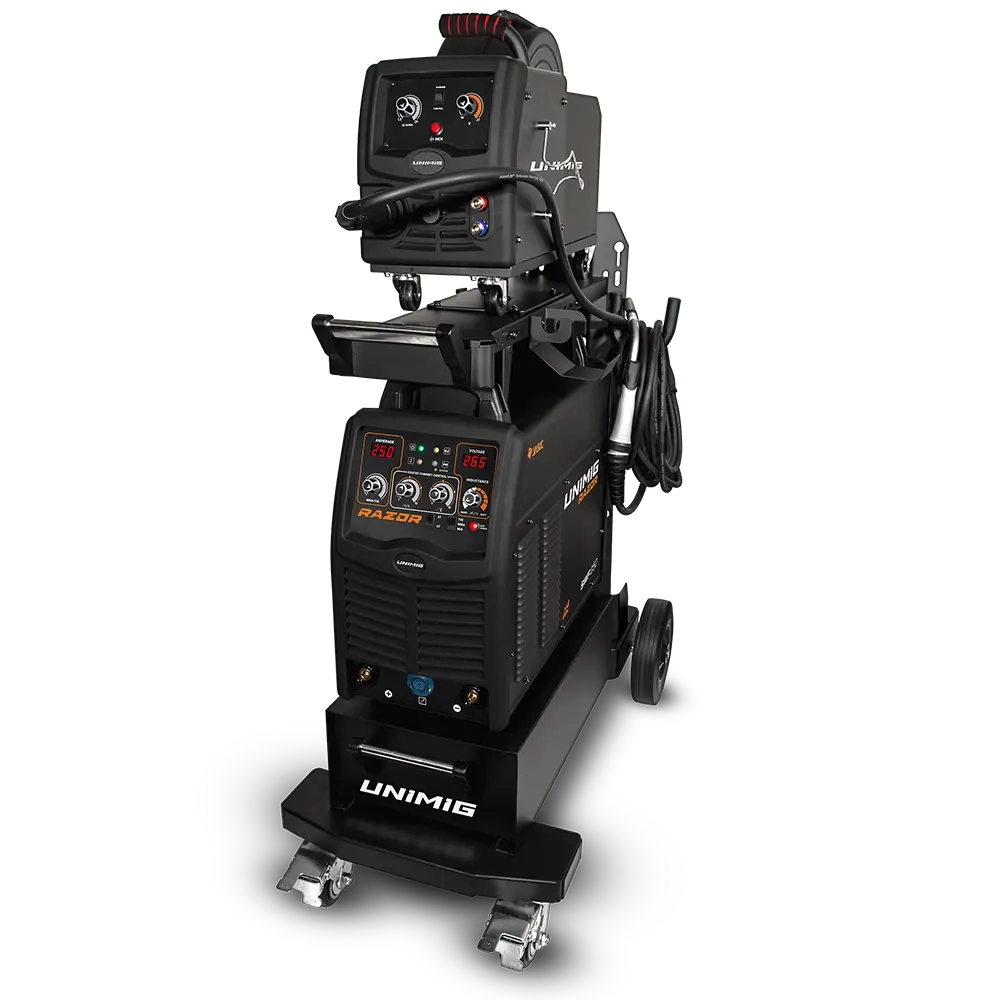

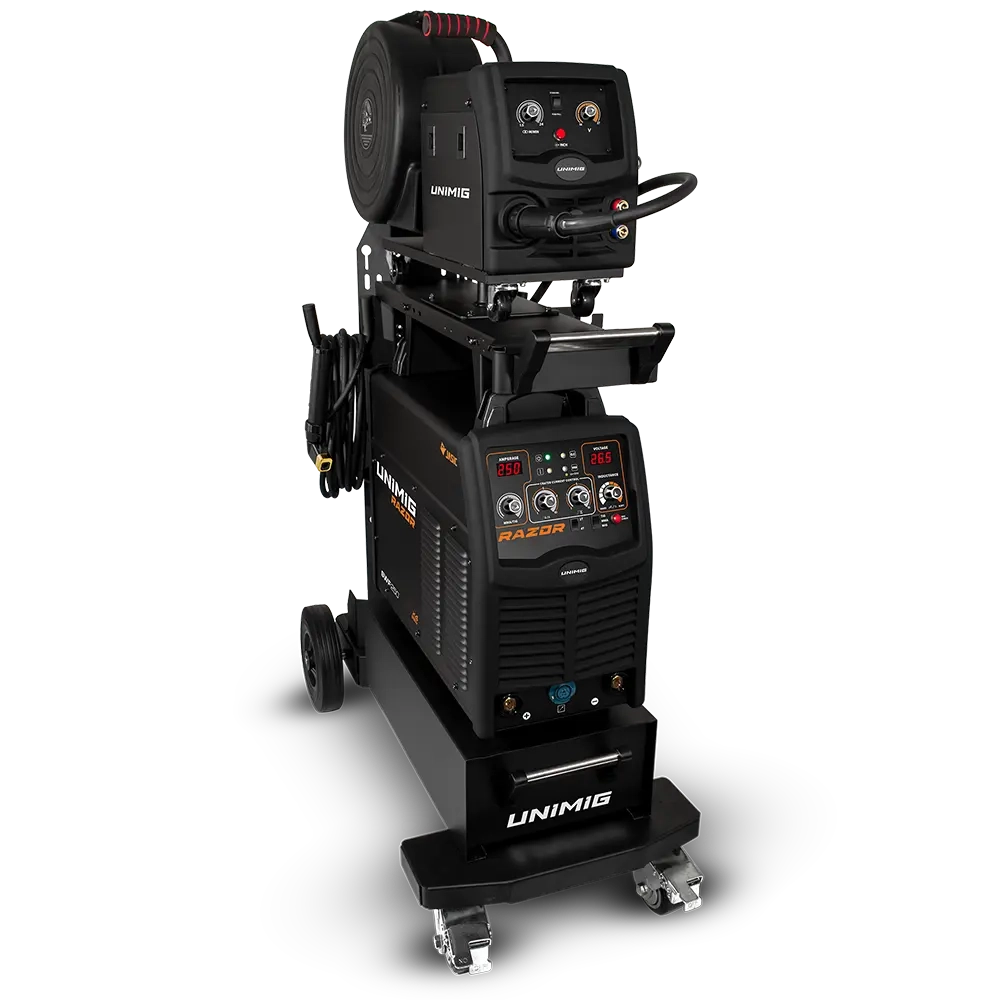

Multi-Process
Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.
Inverter Technology
Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
Accessories
Ready for any kind of welding you've got planned, connect a complete range of MIG, TIG or MMA accessories to your welder.
Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
Additional Features
Inductance Control
Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.
Crater Current Control
End your welds as strong as they started. The Crater Current Control ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
4 Geared Wire Drive
The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially in longer torches.
Separate Wire Feeder
Get the ultimate flexibility. The addition of a separate wire feeder means you can detach the wire feeder from the main power source, giving you an extra 10m of manoeuvrability.
Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
Unplugged (32A Recommended)
Ieff (A)
26.6
Imax (A)
45.0
No Load Voltage (V)
56.5
Protection Class
IP21
Insulation Class
H
Minimum Generator (kVA)
13.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
3 Years
Weight (kg)
54.60
Dimensions (LxWxH)
630 x 280 x 860mm
Suitable Materials
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
Downloads
RAZOR SWF 250, 350 & 500 Manual
6.11 MB
RAZOR SWF 250 Info Sheet
0.62 MB
